[Restart Timing Adjustment]
Overview
Adjust the image lead-edge position (image writing position) in the paper feed direction when printing.
An image can be printed at the correct position by adjusting the reference position of the print side.
NOTICE
- The following setting is required to use this function.
- Perform [FD-Mag. Adjustment] in [Printer Adjustment].
Reference
- For details about [FD-Mag. Adjustment], refer to [FD-Mag. Adjustment].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | Adjustment target selection key | Select the adjustment target. | |
[+] / [,] | Switches the adjustment target page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the on-screen keypad or the Keypad of the Control panel to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Machine Adjustment] - [Printer Adjustment] - [Restart Timing Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Printer Adjustment] - [Restart Timing Adjustment] | |||

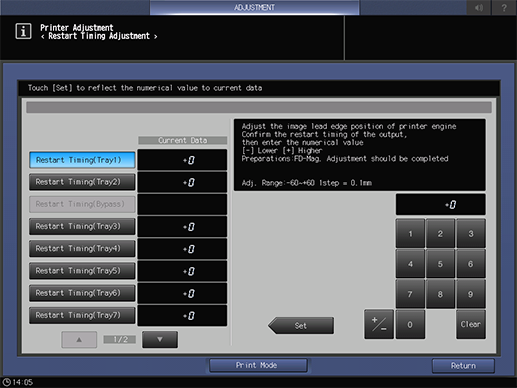

Procedure (When Adjusting the Front Side)
1
Press the adjustment target selection key to adjust.
2
Press [Print Mode].
3
Press [1->1].
4
Load A3 w or 11 e 17 w paper in the paper tray for adjustment selected in step 1, and select that paper tray.
5
Press Start on the Control panel.
A test chart is output.
For details about the
mark that is printed on the front side of the chart, refer to About Charts.
6
Check the restart timing.
Standard value: 20 mm ^ 0.5 mm
7
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
8
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.

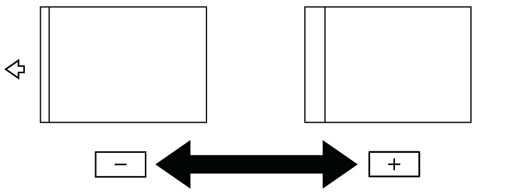

Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-60~+60 1step = 0.1mm]
9
Repeat step 2 to step 8 until the desired result is obtained.

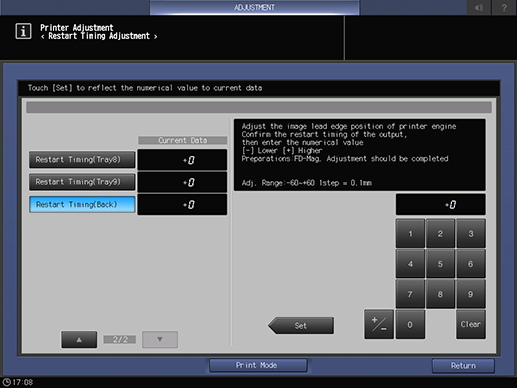

Procedure (When Adjusting the Back Side)
1
Press [Restart Timing(Back)].
2
Press [Print Mode].
3
Press [1->2].
4
Load A3 w or 11 e 17 w paper into any paper tray, and select that paper tray.
5
Press Start on the Control panel.
A test chart is output.
The side that does not have the mark is the back side.
6
Check the restart timing of the back side.
Standard value: 20 mm ^ 0.5 mm
7
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
8
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-60~+60 1step = 0.1mm]
9
Repeat step 2 to step 8 until the desired result is obtained.
