User's Guide

> Administrator Setting > [SNMP Settings] > [SNMP v1/v2c Settings] > Screen

Screen

Overview
Screen Access
Screen

Overview

Configure various settings in case of using SNMP v1/v2c.

Screen Access

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [SNMP Settings] - [SNMP v1/v2c Settings]

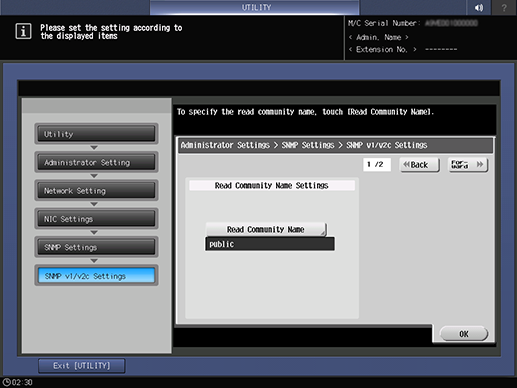

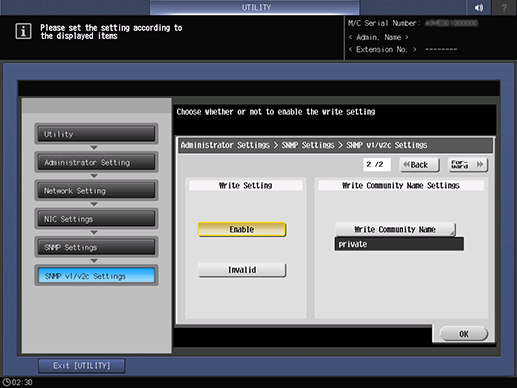

Screen

Common keys

Key name

Description

[Back]

Moves to the previous screen.

[For-ward]

Moves to the next screen.

[OK]

Saves the settings and moves to the previous screen.
