[Delete All Data Setting]
Overview
Overwrite and delete HDD data or non-volatile memory data of this system with other specific data, and disable all the functions of this system.
You can select [Erase Mode] to delete data.
This function prevents information from being leaked when the lease is returned.
NOTICE
- You will not be able to reuse any of the HDD data if data is deleted using [Execute Deletion]. Save necessary data in advance to another device.
Tips
- [Delete All Data Setting] is not an HDD format function. To delete an HDD job, select [Delete HDD Job]. For details, refer to [Delete HDD Job].
- Contact the relevant service center if you plan to use this function.
Item | Description |
|---|---|
[Mode 1] | Overwrite with 0x00 |
[Mode 2] | Overwrite with a single-byte random number - Overwrite with a single-byte random number - Overwrite with 0x00 |
[Mode 3] | Overwrite with 0x00 - Overwrite with 0xff - Overwrite with a single-byte random number - Verification |
[Mode 4] | Overwrite with a single-byte random number - Overwrite with 0x00 - Overwrite with 0xff |
[Mode 5] | Overwrite with 0x00 - Overwrite with 0xff - Overwrite with 0x00 - Overwrite with 0xff |
[Mode 6] | Overwrite with 0x00 - Overwrite with 0xff - Overwrite with 0x00 - Overwrite with 0xff - Overwrite with 0x00 - Overwrite with 0xff - Overwrite with a random number |
[Mode 7] | Overwrite with 0x00 - Overwrite with 0xff - Overwrite with 0x00 - Overwrite with 0xff - Overwrite with 0x00 - Overwrite with 0xff - Overwrite with 0xaa |
[Mode 8] | Overwrite with 0x00 - Overwrite with 0xff - Overwrite with 0x00 - Overwrite with 0xff - Overwrite with 0x00 - Overwrite with 0xff - Overwrite with 0xaa - Verification |
Specifications
Category | Network / Security, Device Management | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Mode 1] | Select Erase Mode. | |
[Mode 2] | |||
[Mode 3] | |||
[Mode 4] | |||
[Mode 5] | |||
[Mode 6] | |||
[Mode 7] | |||
[Mode 8] | |||
[Execute Deletion] | Deletes data with the selected [Erase Mode]. | ||
Remarks | - | ||
Reference | - | ||

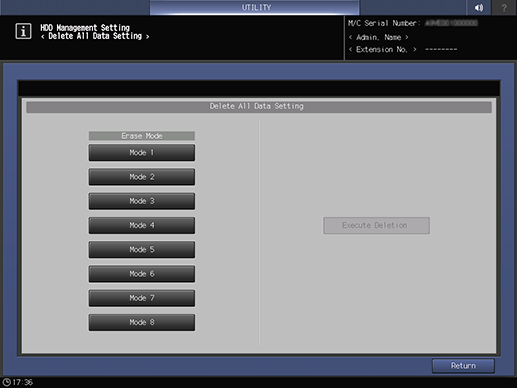

Screen access | Control panel - Utility/Counter - [Administrator Setting] - [Security Setting] - [HDD Management Setting] - [Delete All Data Setting] | ||
Procedure
1
Select Erase Mode.
2
Press [Execute Deletion].
The HDD data is deleted.
