User's Guide

> Administrator Setting > [Security Setting] > [ISW] > Screen

Screen

Overview
Screen Access
Screen

Overview

Function to update system and firmware options.

For updates, the rewriting ROM file uses the recorded USB flash drive.

Screen Access

Control panel - Utility/Counter - [Administrator Setting] - [Security Setting] - [Security Details] - [ISW]

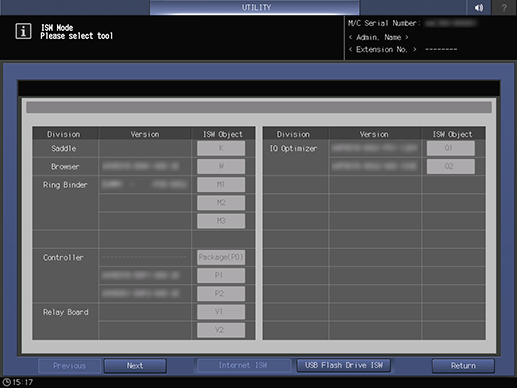

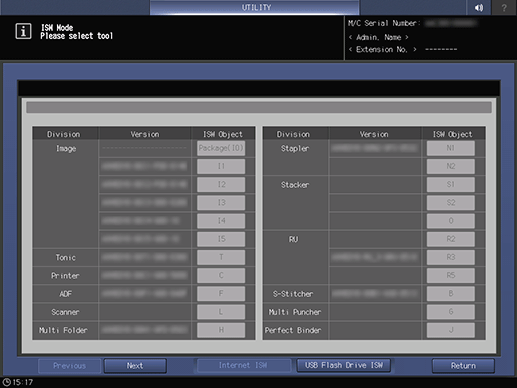

Screen

Common keys

Key name

Description

[Cancel]

Moves to the previous screen without saving the settings.

[OK]

Applies the settings.

[Previous]

Moves to the previous page.

[Next]

Moves to the next page.

[Return]

Moves to the previous screen.
