[Encryption Algorithm]
Overview
Set encryption algorithm used to generate shared key for IPsec transmission.
Specifications
Category | Network / Security, Device Management | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [DES-CBC] | Select encryption algorithm used to generate the common key. Key length* is set when [AES-CBC] is selected. *: Value that indicates the size of data (encryption key) used in encryption and decoding | |
[3DES-CBC] | |||
[AES-CBC] | |||
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [IKE Settings] - [IKEv1 Settings] | ||
Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [IKE Settings] - [IKEv2 Settings] | |||
Procedure

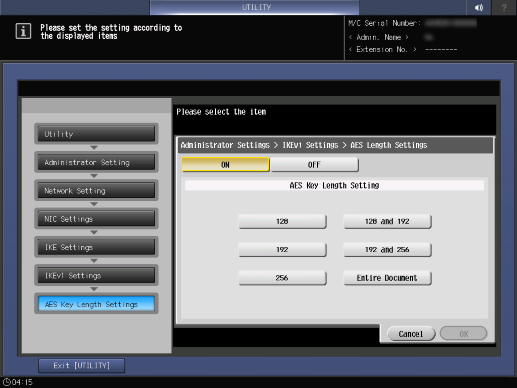

Set key length when [AES-CBC] is selected.
1
Selects [AES-CBC].
The setting screen is displayed.
2
Press [ON] or [OFF].
3
Key length is selected when [ON] is selected.
4
Press [OK].
