[Registration Loop Adj.]
Overview
Adjust the amount of paper loop for registration rollers.
Adjust if there is a paper jam in the register part or if the paper has curled up or become creased.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | Paper tray selection key | Select the adjustment target. | |
[ADU] | |||
[+] / [,] | Switches the adjustment target page. | ||
Keypad | Used to enter numeric values. | ||
[+ / -] | Sets the plus or minus of the numeric value. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the on-screen keypad or the Keypad of the Control panel to [Current Data]. | ||
[Print Mode] | Outputs a chart for measurement. For details, refer to [COPY] Screen. | ||
Remarks | - | ||
Reference | - | ||

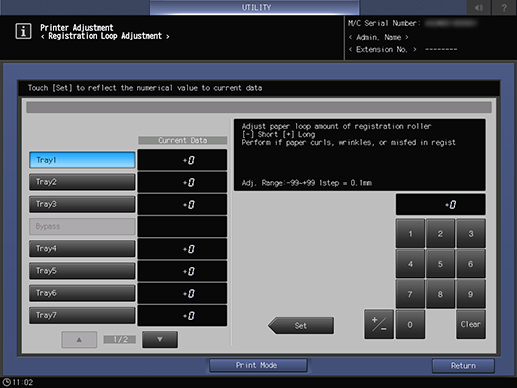

Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Printer Adjustment] - [Registration Loop Adj.] | ||
Procedure
1
Press the key for the item to be adjusted.
2
Press [Print Mode].
3
Set A3 w or 11 e 17 w paper to the paper feed tray you want to adjust and then select that paper feed tray.
4
Press Start on the Control panel.
A chart is output.
For details about the "
" mark that is printed on the front side of the chart, refer to About Charts.
5
Check for paper curls or wrinkles.
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-99~+99 1step = 0.1mm]
8
Repeat steps 1 to 7 until the desired result is obtained.
