[Vertical Position Adj.(CD)]
Overview
Adjust the distance between the center of the punched output paper and the center of the punch holes, and arrange the finishing.
Perform this function when the punch position is misaligned.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Finisher FS-541 with Punch Unit PK-525 mounted | ||
Required items | - | ||
Setting items | [Offset for All Size] | Adjusts the punch hole position common to all the paper sizes. | |
Paper size selection key | Press the paper size selection key. | ||
[+] / [,] | Switches the paper size page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Punch) Adj.] - [Vertical Position Adj.(CD)] | ||
Touch panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Punch) Adj.] - [Vertical Position Adj.(CD)] | |||
Procedure
1
Press the selection key of the paper size to adjust.
2
Press [Print Mode].
3
Load the paper of the size selected in step 1 into any paper tray, and select that paper tray.
[Output Setting] is automatically set to [Punch].
4
Press Start on the Control panel.
A sample is output.
5

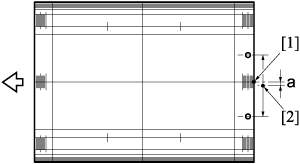

Check distance "a" from the center of the output paper to the center of punch holes.
Standard value: a = 0 mm -1 mm to +1 mm
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-50~+50 1step = 0.1mm]
Punch position at paper edge: [-] Forward [+] Backward
8
Repeat step 2 to step 7 until the desired result is obtained.
