[ADF Orig. Stop Pos. Auto]
Overview
This function automatically adjusts the scanning start position of the ADF and the image centering in the crosswise direction.
Scanning accuracy is maintained by making regular adjustments.
NOTICE
- To make correct adjustments, configure the following setting in advance.
- To adjust the scanning start position: Perform [FD-Mag. Adjustment] in [ADF Adjustment].
- To adjust the image centering: Perform [Centering Adjustment] in [Printer Adjustment].
Reference
- For details about [FD-Mag. Adjustment] in [ADF Adjustment], refer to [FD-Mag. Adjustment].
- For details about [Centering Adjustment] in [Printer Adjustment], refer to [Centering Adjustment].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Paper Feeder Unit PF-713 | ||
Required items | - | ||
Setting items | [Restart Timing(Front)] | Adjusts the front side scanning start position when scanning the original using the ADF. | |
[Restart Timing(Back)] | Adjusts the back side scanning start position when scanning the original using the ADF. | ||
[Centering(Front)] | Adjusts the image centering in the crosswise direction of the front side when scanning the original using the ADF. | ||
[Centering(Back)] | Adjusts the image centering in the crosswise direction of the back side when scanning the original using the ADF. | ||
[Current Data] | Displays the current adjustment value. | ||
[Position Adj.(mm)] | Displays the adjustment value calculated as a result of the automatic adjustment. | ||
[Start] | Starts automatic adjustment. | ||
[Set] | Sets the numeric value displayed in [Position Adj.(mm)] in the selected item. | ||
Remarks | - | ||
Reference | - | ||

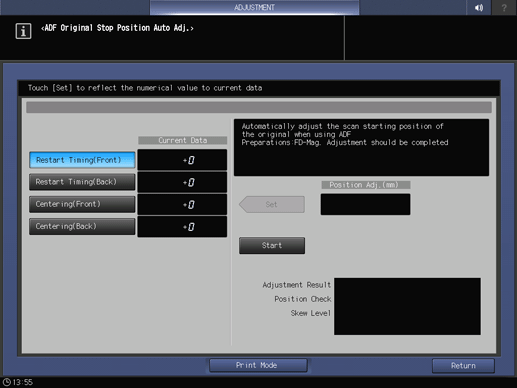

Screen access | Touch panel - [MACHINE] - [Adjustment] - [ADF Adjustment] - [ADF Orig. Stop Pos. Auto] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [ADF Adjustment] - [ADF Orig. Stop Pos. Auto] | |||
Procedure
1
Select an item you want to adjust.
Finally, adjustment is required for all the items.
2
Press [Print Mode].
[Simplex/Duplex] is selected automatically, so do not change this setting.
3
Load A4 paper into the Paper tray, and select that paper tray.
4
Place the test chart used for preparation in the ADF tray, and press [Start].
The selected items are adjusted automatically.
If you selected [Restart Timing(Front)] in step 2, load the test chart used in [FD-Mag. Adjustment] of [ADF Adjustment] with its front side facing upward.
If you selected [Centering(Front)] in step 2, load the test chart used in [Centering Adjustment] of [Printer Adjustment] with its front side facing upward.
If you selected [Restart Timing(Back)] in step 2, load the test chart used in [FD-Mag. Adjustment] of [ADF Adjustment] with its back side facing upward.
If you selected [Centering(Back)] in step 2, load the test chart used in [Centering Adjustment] of [Printer Adjustment] with its back side facing upward.
5
The result is displayed in [Adjustment Result].
If adjustment fails, [NG] is displayed in [Adjustment Result]. Make adjustments with [ADF Original Stop Pos. Adj.].
[Skew Level] is only displayed when you have selected [Restart Timing(Front)] in step 2.
6
Check that [Adjustment Result] is [OK], and press [Set].
The numeric value of [Position Adj.(mm)] is reflected on [Current Data].
