[Annotation No.]
Overview
Sets [Text] and [Annotation Number] to be printed as [Annotation].
Both [Text] and [Annotation Number] can be printed simultaneously.
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is [Administrator Setting]?.
Specifications
Category | Copy / Scan | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Text] | ||
[ON] | Prints [Text]. | ||
- [OFF] | Does not print [Text]. | ||
[Set] | Up to 20 single-byte alphanumeric characters to be printed can be entered. | ||
[Annotation Number] | |||
[ON] | Prints [Annotation Number]. | ||
-[OFF] | Does not print [Annotation Number]. | ||
[Set] | Up to 9 single-byte characters to be printed can be entered. | ||
[Annotation Number Print Form] | |||
-[All Digit] | Sets the [Annotation Number] format. | ||
[EffectiveDigit] | |||
Remarks | -: Default | ||
Reference | For details about how to enter characters, refer to Entering Text. | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Annotation Setting] - Optional stamp key - [New Register] - [Item 1] - [Annotation No.] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Annotation Setting] - Optional stamp key - [New Register] - [Item 2] - [Annotation No.] | |||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Annotation Setting] - Optional stamp key - [New Register] - [Item 3] - [Annotation No.] | |||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Annotation Setting] - Registered optional stamp key - [Edit] - [Item 1] - [Annotation No.] | |||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Annotation Setting] - Registered optional stamp key - [Edit] - [Item 2] - [Annotation No.] | |||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Annotation Setting] - Registered optional stamp key - [Edit] - [Item 3] - [Annotation No.] | |||

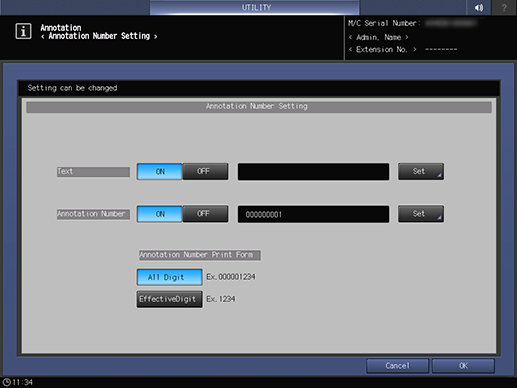

Procedure
1
Press [ON] of [Text] or [Annotation Number].
In case of printing [Text] and [Annotation Number] simultaneously, press [ON] of both.
2
Press [Set].

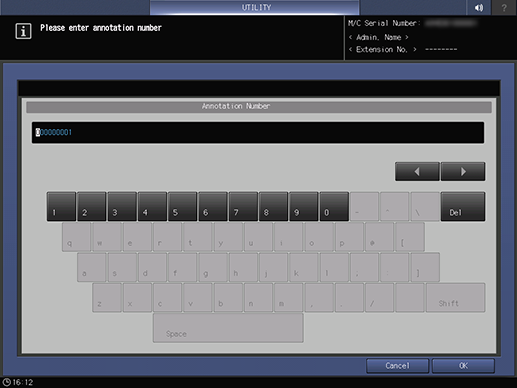

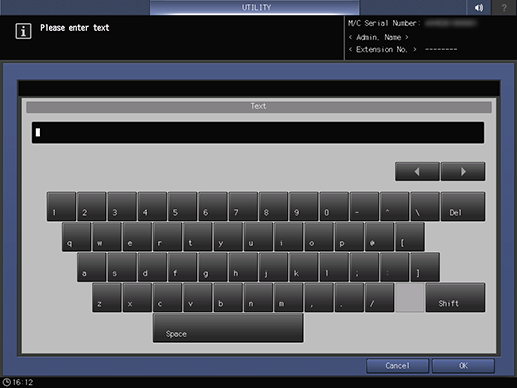

The entry screen opens.
3
Enter [Text] or [Annotation Number].
4
Press [OK].
5
Select print format using [Annotation Number Print Form].
6
Press [OK].
