[Restart Timing Adjustment]
Overview
Adjust the scanning start position when scanning the original using the Original glass.
Using this function allows you to check the misalignment between the original and the output paper, and adjust to the correct position.
NOTICE
- The following setting is required to use this function.
- Perform [FD-Mag. Adjustment] in [Scan Adjustment].
Reference
- For details about [FD-Mag. Adjustment], refer to [FD-Mag. Adjustment].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Current Data] | Displays the adjustment value of the restart timing. | |
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the on-screen keypad or the Keypad of the Control panel to [Current Data]. | ||
Remarks | - | ||
Reference | - | ||

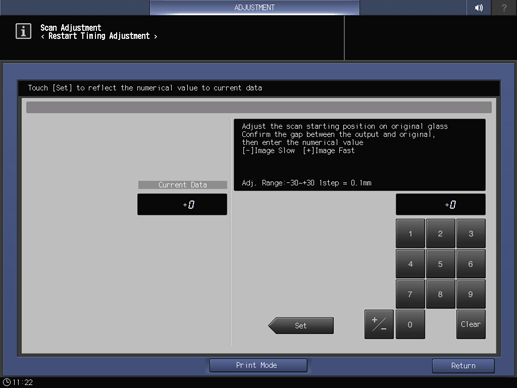

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Machine Adjustment] - [Scan Adjustment] - [Restart Timing Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Scan Adjustment] - [Restart Timing Adjustment] | |||
Procedure
1
Press [Print Mode].
2
Load A3 w paper or 11 e 17 w paper into the paper tray to be adjusted, and select that paper tray.
3
Place a test chart on the Original glass, and press Start on the Control panel.
A test chart is copied.
4

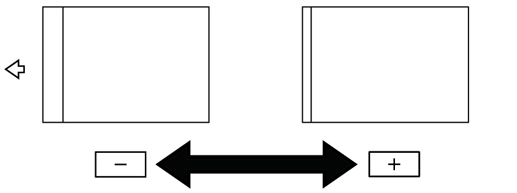

Check the misalignment by comparing the output paper with the chart.
Standard value: 0 mm ^ 1.5 mm
5
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
6
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-30~+30 1step = 0.1mm]
7
Repeat step 1 to step 6 until the desired result is obtained.
