[Pre-Shared Key Text]
Overview
Enter Pre-Shared Key text string shared with communication recipient.
In case of ASCII code, up to 128 single-byte characters can be entered, and in case of HEX code, up to 128 single-byte characters can be entered.
NOTICE
- Following settings are required to use this function.
- Set to [Peer] as communication recipient on [Edit] - [ON] screen
Specifications
Category | Network / Security | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Input] | Enter shared text string. | |
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [Peer] - Select one group - [Edit] | ||
Procedure
1
Press [Input].
2

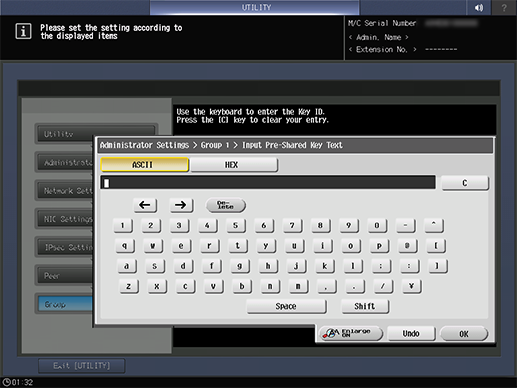

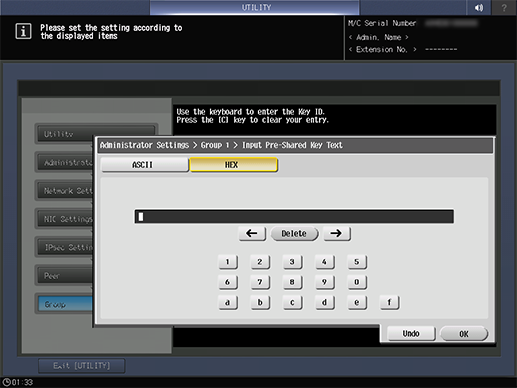

Select [ASCII] or [HEX] and enter shared text string.
The displayed screen differs depending on selected key.
For details about how to enter characters, refer to Entering Text.
When expanding input screen display, press [Enlarge ON]. Press [Enlarge OFF] when restoring.
When [Undo] is pressed, the numerical value returns to the value before editing.
3
Press [OK].
