User's Guide

> Administrator Setting > [IPsec SA Settings] > [Edit] > [Encapsulation Mode]

[Encapsulation Mode]

Overview
Specifications

Overview

Set data encryption method.

NOTICE
  • Following settings are required to use this function.
  • Select [Edit] using [ON].
Reference
  • For details about [Edit], refer to [Edit].

Specifications

Category

Network / Security

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

-

Required items

-

Setting items

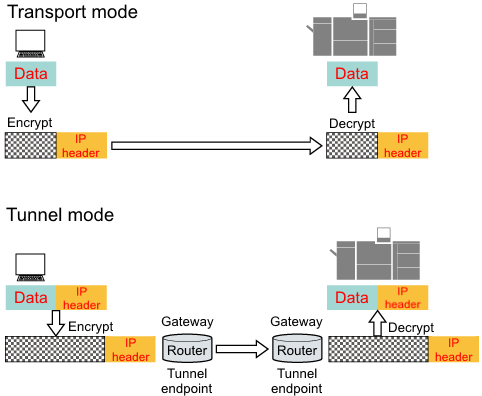

[Tunnel Mode]

Adds a new IP header to an encrypted data that is created by combining IP header and data. Higher security level encryption is possible.

Enter the communication recipient IPsec gateway IP address using [Tunnel End Point].

-[Transport Mode]

Encrypts only the data, and sends by adding an IP header to it.

Remarks

-: Default

Reference

-

Screen access

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [IPsec SA Settings] - [Edit]
