[Front & Back Density]
Overview
Set the transfer output voltage for the front end and rear end required during output.
If irregularity in density occurs while correcting the transfer output voltage which is usually corrected automatically, the correction value is adjusted manually.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [1st Transfer Y] | Select the adjustment target. | |
[1st Transfer M] | |||
[1st Transfer C] | |||
[1st Transfer K] | |||
[1st Trans.(Monochrome)] | |||
[2nd Transfer Front] | |||
[2nd Transfer Back] | |||
[Set] | Sets the numeric value entered using the on-screen keypad or the Keypad of the Control panel to [Current Data]. | ||
Keypad | Used to enter numeric values. | ||
[+ / -] | Sets the plus or minus of the numeric value. | ||
[Clear] | Returns the entered numeric value to "0". | ||
Remarks | - | ||
Reference | - | ||

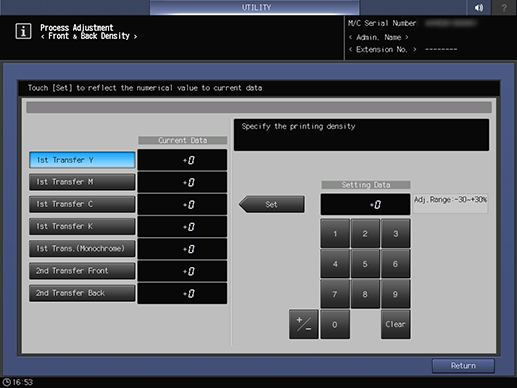

Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Process Adjustment] - [Front & Back Density] | ||
Procedure
1
Press the key for the item to be adjusted.
2
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj.Range:-30~+30%]
