User's Guide

> Administrator Setting > [Common Setting] > [Center Crop Mark Trim Margin]

[Center Crop Mark Trim Margin]

Overview
Specifications
Procedure

Overview

Set the additional margin between the center crop mark and the original image area.

Specifications

Category

Device Management

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

-

Required items

-

Setting items

[Change]

Changes the margin to add the trim margin to.

Remarks

-: Default

Reference

-

Screen access

Control panel - Utility/Counter - [User Setting] - [Common Setting]

Control panel - Utility/Counter - [Administrator Setting] - [Common Setting]

Procedure

1
Press [Change].

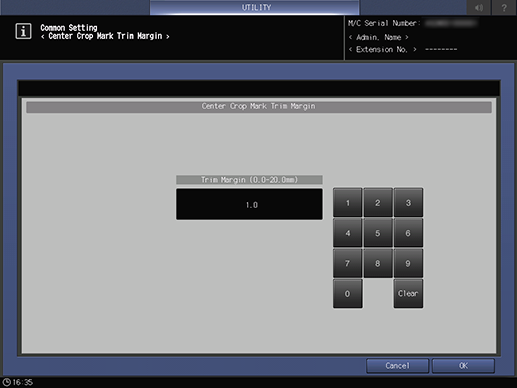

The [Center Crop Mark Trim Margin] screen is displayed.

Default: 1.0 mm

2
Use the on-screen keypad to enter the trim margin.

Available range: 0.0 mm to 20.0 mm

3
Press [OK].
