[ADF Original Stop Pos. Adj.]
Overview
Adjust the position to start scanning on the ADF and the image centering in the crosswise direction.
Scanning accuracy is maintained by making regular adjustments.
NOTICE
- To make correct adjustments, configure the following setting in advance.
- To adjust the scanning start position: Perform [FD-Mag. Adjustment] in [ADF Adjustment].
- To adjust the image centering: Perform [Centering Adjustment] in [Printer Adjustment].
Reference
- For details about [FD-Mag. Adjustment] in [ADF Adjustment], refer to [FD-Mag. Adjustment].
- For details about [Centering Adjustment] in [Printer Adjustment], refer to [Centering Adjustment].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Paper Feeder Unit PF-713 | ||
Required items | - | ||
Setting items | [Restart Timing(Front)] | Adjusts the front side scanning start position when scanning the original using the ADF. | |
[Restart Timing(Back)] | Adjusts the back side scanning start position when scanning the original using the ADF. | ||
[Centering(Front)] | Adjusts the image centering in the crosswise direction of the front side when scanning the original using the ADF. | ||
[Centering(Back)] | Adjusts the image centering in the crosswise direction of the back side when scanning the original using the ADF. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

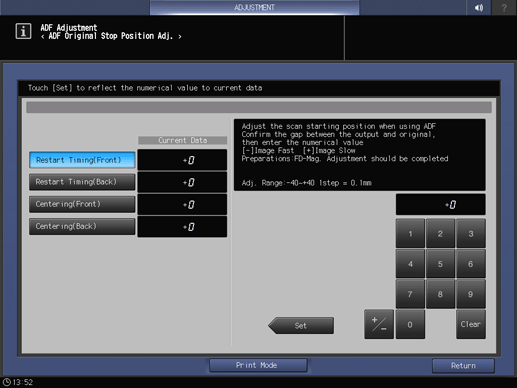

Screen access | Touch panel - [MACHINE] - [Adjustment] - [ADF Adjustment] - [ADF Original Stop Pos. Adj.] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [ADF Adjustment] - [ADF Original Stop Pos. Adj.] | |||
Procedure (Adjustment of Scanning Start Position)
1
Select [Restart Timing(Front)] or [Restart Timing(Back)].
2

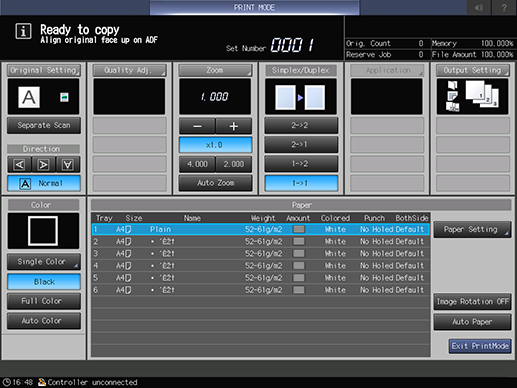

Press [Print Mode].
The setting screen is displayed.
3
Load A4 paper into the Paper tray, and select that paper tray.
[Simplex/Duplex] is selected automatically, so do not change this setting.
4
Place a test chart in the ADF tray, and press Start on the Control panel.
The test chart is scanned and a sample is printed out.
If you selected [Restart Timing(Front)] in step 1, load the test chart with its front side facing upward.
If you selected [Restart Timing(Back)] in step 1, load the test chart with its back side facing upward.
5

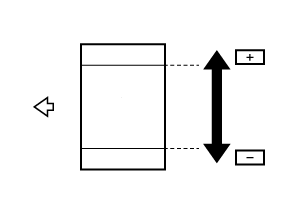

Check the misalignment by comparing the output paper with the chart.
Standard value: 0 mm ^ 1.0 mm
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-40~+40 1step = 0.1mm]
8
Repeat step 2 to step 7 until the desired result is obtained.
Procedure (Image Centering Adjustment)
1
Select [Centering(Front)] or [Centering(Back)].
2
Press [Print Mode].
[Simplex/Duplex] is selected automatically, so do not change this setting.
3
Load A4 paper into the Paper tray, and select that paper tray.
4
Place a test chart in the ADF tray, and press Start on the Control panel.
The test chart is scanned and a sample is printed out.
If you selected [Centering(Front)] in step 1, load the test chart with its front side facing upward.
If you selected [Centering(Back)] in step 1, load the test chart with its back side facing upward.
5

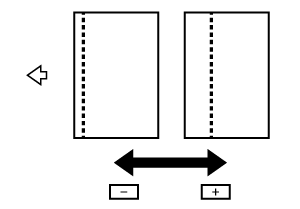

Check the misalignment by comparing the output paper with the chart.
Standard value: 0 mm ^ 2.0 mm
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-44~+44 1step = 0.1mm]
8
Repeat step 2 to step 7 until the desired result is obtained.
