[Flattening a Fold (Strength)]
Overview
Adjust the strength when forming a booklet spine.
Make this adjustment when there is a problem with the form of the spine.
Tips
- In this adjustment, set the reference value of the spine forming strength specified on the [COPY] screen or in the printer driver. If the strength specified on the [COPY] screen or in the printer driver is insufficient, you can specify a stronger strength in this adjustment, but be careful that the reference value shifts completely.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Saddle Stitcher SD-513 | ||
Required items | - | ||
Setting items | [Current Data] | Displays the adjustment value of the strength to form the spine. | |
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad. | ||
Remarks | - | ||
Reference | - | ||

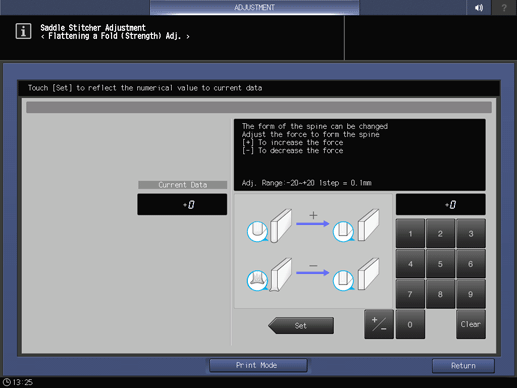

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Flattening a Fold (Strength)] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Flattening a Fold (Strength)] | |||
Procedure
1
Press [Print Mode].
2
Load A3 w or 11 e 17 w paper into any paper tray, and select that paper tray.
3
Press Start on the Control panel.
A sample is output.
4
Check the spine of the output booklet.
5
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
6
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-20~+20 1step = 0.1mm]
7
Repeat step 1 to step 6 until the desired result is obtained.
