[FD-Mag. Auto Adjustment]
Overview
Automatically adjust the magnification in the paper feed direction when using the ADF.
Scanning accuracy is maintained by making regular adjustments.
NOTICE
- The following setting is required to use this function.
- Perform [FD-Mag. Adjustment] in [Printer Adjustment].
Reference
- For details about [FD-Mag. Adjustment] in [Printer Adjustment], refer to [FD-Mag. Adjustment].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Paper Feeder Unit PF-713 | ||
Required items | - | ||
Setting items | [Current Data] | Displays the adjustment value of the current magnification in the paper feed direction. | |
[Magnification Adj.(%)] | Displays the adjustment value calculated as a result of the automatic adjustment. | ||
[Start] | Starts automatic adjustment. | ||
[Set] | Sets the numeric value displayed in [Magnification Adj.(%)]. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [ADF Adjustment] - [FD-Mag. Auto Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [ADF Adjustment] - [FD-Mag. Auto Adjustment] | |||
Procedure
1
Press [Print Mode].
2
Place a test chart in the ADF tray, and press Start on the Control panel.
Load the test chart with the front side facing upward.
3

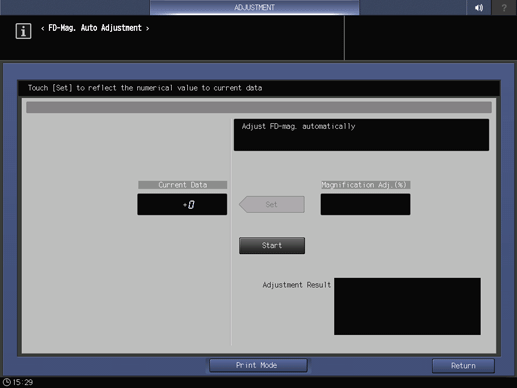

Automatic adjustment is performed, and [Adjustment Result] is displayed.
If adjustment fails, [NG] is displayed in [Adjustment Result]. Make adjustments with [FD-Mag. Adjustment].
4
Check that [Adjustment Result] is [OK], and press [Set].
The numeric value of [Magnification Adj.(%)] is reflected on [Current Data].
