[Paper Length Adjustment]
Overview
Adjust the alignment plate position in the paper feed direction of the Relay Unit RU-510 to eliminate misalignment of punch holes.
This function is available when paper is conveyed while the position of the paper feed direction is not fixed against the next-stage finisher.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Relay Unit RU-510 | ||
Required items | - | ||
Setting items | Keypad | Used to enter numeric values. | |
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Relay Stacker Adjustment] - [Paper Length Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Relay Stacker Adjustment] - [Paper Length Adjustment] | |||
Procedure
1
Press [Print Mode].
2
Load A4 paper into the paper tray, and select that paper tray.
3
Set the number of copies to 10, and press Start on the Control panel.
A sample is output. This section describes a sample with punch holes.
4
Check for misalignment "a" and distortion "b" in punch holes.
If punch holes are misaligned in the paper feed direction, adjust the FD alignment plate position.
5
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
6
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

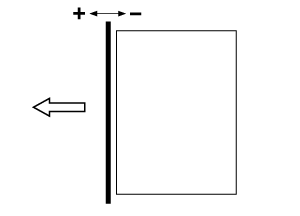

[-] To reduce the dispersion, [+] To reduce the misalignment
[Adj. Range:-50~+50 1step = 0.1mm]
To make adjustments, set the paper length adjustment value to the maximum (to reduce misalignment), adjust in the direction to reduce dispersion , and find a point at which the through hole of the punch holes is not misaligned.
7
Repeat step 1 to step 6 until the desired result is obtained.
