[Tri-Fold-in Pos. Adj.]
Overview
Adjust the fold position for [Tri-Fold-in]. Make this adjustment when the fold position deviates from the standard value.
Tips
- If a numeric value is entered in [Offset for All Size], it is applied to all the paper sizes. If a numeric value is entered for a specific paper size, the setting value becomes the sum of the entered value of the specific paper size and the entered value of [Offset for All Size].
- When adjusting both [Fold 1] and [Fold 2], first adjust [Fold 1].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | FoldingUnit FD-503 | ||
Required items | - | ||
Setting items | [Fold 1] | Changes the 1st fold position. | |
[Fold 2] | Changes the 2nd fold position. | ||
[Offset for All Size] | Sets the fold position common to all the paper sizes. | ||
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

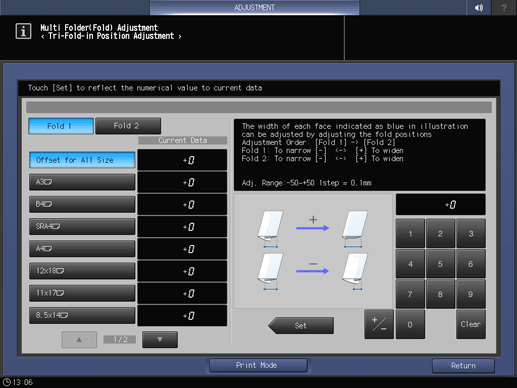

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Multi Folder Adjustment] - [Multi Folder(Fold) Adj.] - [Tri-Fold-in Pos. Adj.] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Multi Folder Adjustment] - [Multi Folder(Fold) Adj.] - [Tri-Fold-in Pos. Adj.] | |||
Procedure
1
Press the selection key of the paper size to adjust.
2
Press [Print Mode].
3
Load the paper of the size selected in step 1 into any paper tray, and select that paper tray.
[Separate Scan] is automatically set to [Tri-Fold-in].
4
Press Start on the Control panel.
A sample is output.
5
Check lengths "a" and "b" of the printed paper.
Standard value: a, b = -1.5 mm to +1.5 mm or less
Paper size | Standard value a | Standard value b |
|---|---|---|
[A3w] | 139.0 mm | 142.0 mm |
[B4w] | 120.3 mm | 123.3 mm |
[SRA4w] | 105.6 mm | 108.6 mm |
[A4w] | 98.0 mm | 101.0 mm |
[12e18w] | 151.4 mm | 154.4 mm |
[11e17w] | 142.9 mm | 145.9 mm |
[8.5e14w] | 117.5 mm | 120.5 mm |
[8.5e11w] | 92.1 mm | 95.1 mm |
[8Kw] | 129.0 mm | 132.0 mm |
(1) [Fold 1], (2) [Fold 2]
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7
Select [Fold 1].
8
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-50~+50 1step = 0.1mm]
9
Select [Fold 2].
10
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-50~+50 1step = 0.1mm]
11
Repeat step 2 to step 10 until the desired result is obtained.
