[Crease(Down Convex) Position]
Overview
Adjust the crease (lower convex) position.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Trimmer Unit TU-510 with Creaser Unit CR-102 mounted | ||
Required items | - | ||
Setting items | Crease timing selection key | Select which crease position is adjusted. | |
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

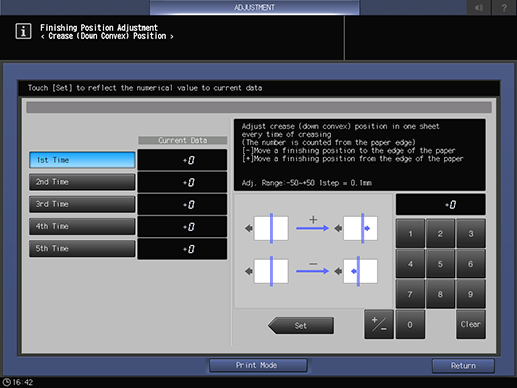

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [Finishing Position Adj.] - [Crease(Down Convex) Position] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [Finishing Position Adj.] - [Crease(Down Convex) Position] | |||
Procedure
1
Press the selection key of the crease timing to adjust.
2
Press [Print Mode].
3
Load the desired paper into a paper tray, and select that paper tray.
4
Press Start on the Control panel.
A sample is output.
5
Check the crease position.
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

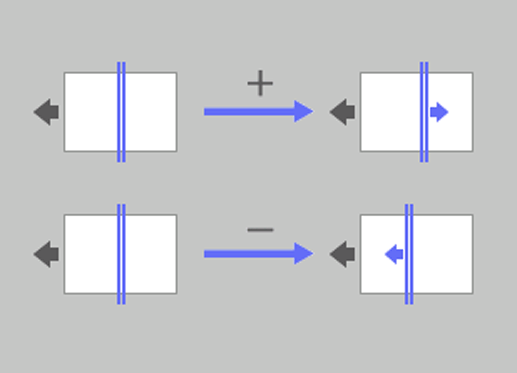

(-) To move the crease position to the lead edge, (+) To move the crease position to the rear edge
[Adj. Range:-50~+50 1step = 0.1mm]
8
Repeat step 2 to step 7 until the desired result is obtained.
