[Addressing Mode]
Overview
Select method to set communication recipient address.
Set address differs depending on the selected setting method.
NOTICE
- The following setting is required to use this function.
- Set to [ON] as communication recipient on [Peer] - [Edit] screen
Tips
The following addresses are set using selected setting method.
- [Unicast]: IP address
- [Subnet Settings]: IP address and subnet mask
Specifications
Category | Network / Security | |||
Location | Machine | Control Panel | ||
Printer driver | - | |||
Application | - | |||
Required options | - | |||
Required items | - | |||
Setting items | -[Unicast] | [IP Address] | Enter the IP address. | |
[Subnet Settings] | [IP Address] | Enter the IP address. | ||
[Subnet Mask] | Enter the subnet mask. | |||
Remarks | -: Default | |||
Reference | - | |||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [Peer] - Select one group - [Edit] | |||
Procedure (In Case of [Unicast])

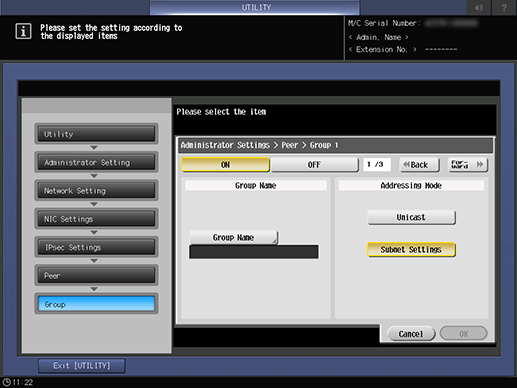

1
Selects [Unicast].
2
Press [For-ward].
3
Press [IP Address].
4

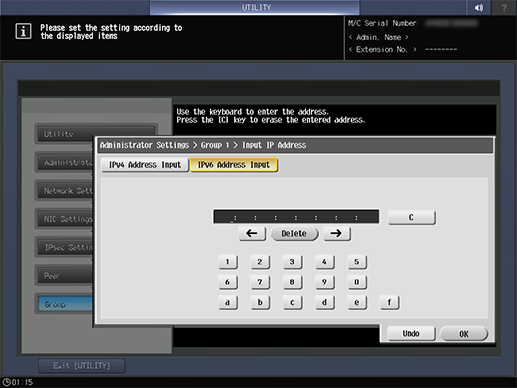

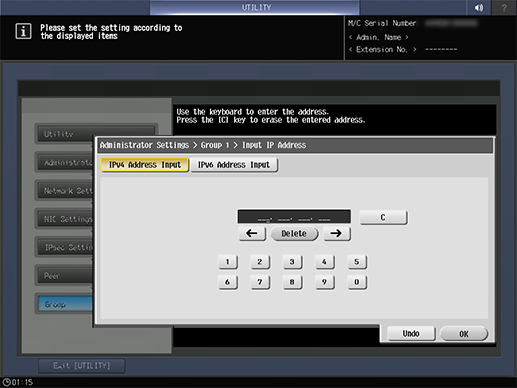

Select [IPv4 Address Input] or [IPv6 Address Input] and enter IP address.
The displayed screen differs depending on selected key.
For details about how to enter characters, refer to Entering Text.
When [Undo] is pressed, the numerical value returns to the value before editing.
5
Press [OK].
Procedure (In Case of [Subnet Settings])
1
Selects [Subnet Settings].
2
Press [For-ward].
3
Press [IP Address] or [Subnet Mask].
4
Enter IP address.
For details on input, and see Procedure 4 of Procedure (In Case of [Unicast]) .
5
Press [OK].
