[Centering Adjustment]
Overview
Adjust the image centering in the crosswise direction when scanning the original using the Original glass.
Using this function allows you to check the misalignment between the original and the output paper, and adjust to the correct position.
NOTICE
- The following setting is required to use this function.
- Perform [Centering Adjustment] in [Printer Adjustment].
Reference
- For details about [Centering Adjustment], refer to [Centering Adjustment].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Current Data] | Displays the centering adjustment value. | |
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the on-screen keypad or the Keypad of the Control panel to [Current Data]. | ||
Remarks | - | ||
Reference | - | ||

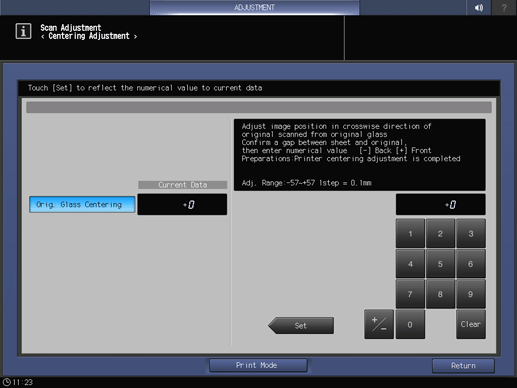

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Machine Adjustment] - [Scan Adjustment] - [Centering Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Scan Adjustment] - [Centering Adjustment] | |||
Procedure
1
Press [Print Mode].
2
Load A3 w paper or 11 e 17 w paper into the paper tray to be adjusted, and select that paper tray.
3
Place a test chart on the Original glass, and press Start on the Control panel.
A test chart is copied.
4
Check the misalignment by comparing the output paper with the chart.
Standard value: 0 mm ^ 1.5 mm
5
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
6

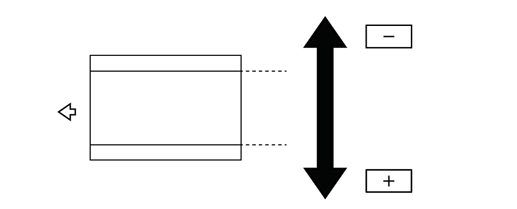

Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-57~+57 1step = 0.1mm]
7
Repeat step 1 to step 6 until the desired result is obtained.
