[Standby Pos.(Front Adj.)]
Overview
Adjust the alignment plate position in front of the crosswise direction of the Stacker tray to eliminate misalignment or distortion of the output paper.
This function is available when a significant misalignment occurs in the crosswise direction during output processing.
Tips
- Make adjustments together with [Standby Pos.(Rear Adj.)]. For details about [Standby Pos.(Rear Adj.)], refer to [Standby Pos.(Rear Adj.)].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Large Capacity Stacker LS-507 | ||
Required items | - | ||
Setting items | [Stacker No.1] | Sets the alignment plate position of the 1st Large Capacity Stacker LS-507. This item is displayed when Large Capacity Stacker LS-507 is mounted as a pair. | |
[Stacker No.2] | Sets the alignment plate position of the 2nd Large Capacity Stacker LS-507. This item is displayed when Large Capacity Stacker LS-507 is mounted as a pair. | ||
Paper size selection key | Selects the paper size to adjust. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

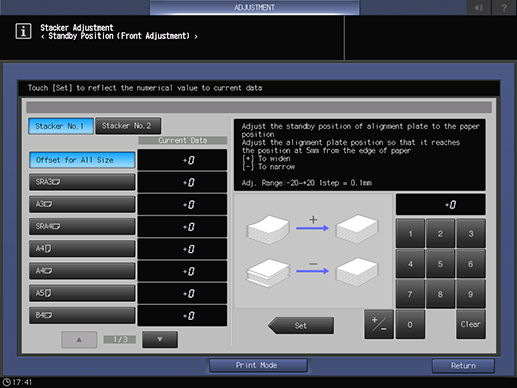

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Stacker Adjustment] - [Standby Pos.(Front Adj.)] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Stacker Adjustment] - [Standby Pos.(Front Adj.)] | |||
Procedure
1
When Large Capacity Stacker LS-507 is used as a pair, select [Stacker No.1] or [Stacker No.2].
2
Press the selection key of the paper size to adjust.
3
Press [Print Mode].
4
Load the desired paper into a paper tray, and select that paper tray.
5
Press Start on the Control panel.
A sample is output, and printing is interrupted. A warning message is displayed on the screen.
6
Check whether the distance between the paper edge in Large Capacity Stacker LS-507 and the alignment plate position in front of the crosswise direction is 5 mm.
When the check is completed, remove paper.
7
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
8
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

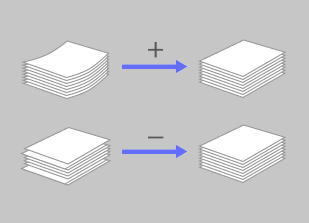

(-) To narrow the standby position, (+) To widen the standby position
[Adj. Range:-20~+20 1step = 0.1mm]
9
Repeat step 3 to step 8 until the desired result is obtained.
