User's Guide

> Administrator Setting > [IEEE802.1x Authentication Settings] > Screen

Screen

Overview
Screen Access
Screen

Overview

Set usage environment for IEEE802.1x authentication.

When IEEE802.1x authentication is used, only devices permitted by the administrator can be connected to the system. This ensures strong security for the system.

Screen Access

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [IEEE802.1x Authentication Settings]

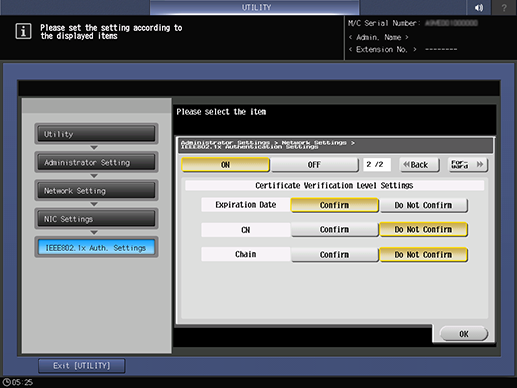

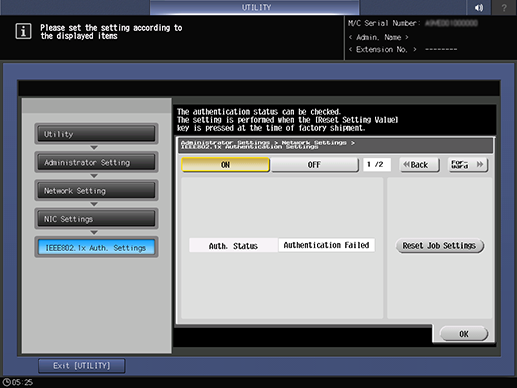

Screen

Common keys

Key name

Description

[Back]

Moves to the previous screen.

[For-ward]

Moves to the next screen.

[OK]

Saves the settings and moves to the previous screen.

[Exit [UTILITY]]

Closes the [UTILITY] screen.
