[Temperature Adjustment]
Overview
Arrange the finishing of printouts by adjusting the temperature of the glue tank and gluing roller when performing perfect binding using Perfect Binder PB-503.
NOTICE
- Do not change the setting temperature of the temperature sensor of the glue tank except when the glue viscosity is low or glue spreads too much.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Perfect Binder PB-503 | ||
Required items | - | ||
Setting items | [Glue Tank -Low] | Adjusts the control temperature of the glue tank heater. Default: 185°C Recommended temperature: Bottom of glue tank = 180°C to 190°C | |
[Glue Apply Roller] | Adjusts the temperature to control the roller heater. Default: 165°C Recommended temperature: Gluing roller = 160°C to 170°C | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

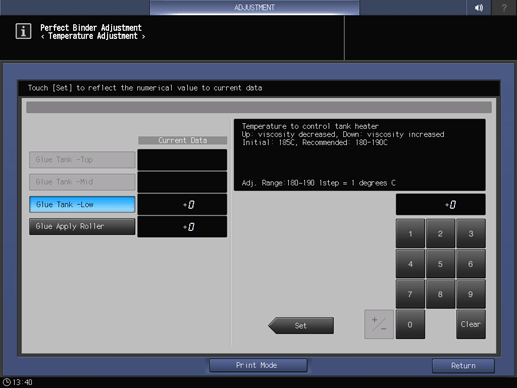

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Perfect Binder Adjustment] - [Temperature Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Perfect Binder Adjustment] - [Temperature Adjustment] | |||
Procedure
1
Load covers into the Perfect binder cover tray or any paper tray.
When using any paper tray, you need to set a cover tray by selecting [Perfect Bind] of [Output Setting]. For details, refer to [Cover Tray].
2
Load body paper into any paper tray.
3
Select [Glue Tank -Low] or [Glue Apply Roller].
4
Press [Print Mode].
5
Select the tray in which body paper was loaded in step 2.
6
Press Start on the Control panel.
A perfect binding sample is output.
7
Check whether the status of the applied glue is appropriate or not.
8
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
9
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
Increasing the temperature lowers the glue viscosity. Decreasing the temperature raises the glue viscosity.
10
Repeat step 4 to step 9 until the desired result is obtained.
