User's Guide

> Administrator Setting > [Protocol Setting] > [Edit] > Screen

Screen

Overview
Screen Access
Screen

Overview

Sets protocol.

Group name, protocol type, etc. can be set for each group.

Screen Access

Control panel - Utility/Counter - [Administrator Setting] - [Network Setting] - [NIC Settings] - [TCP/IP Settings] - [IPsec Settings] - [IPsec Settings] - [Protocol Setting] - Select one group - [Edit]

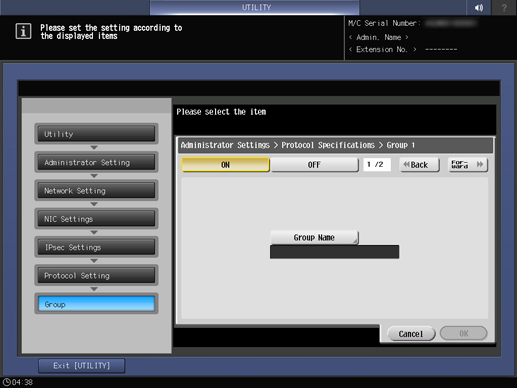

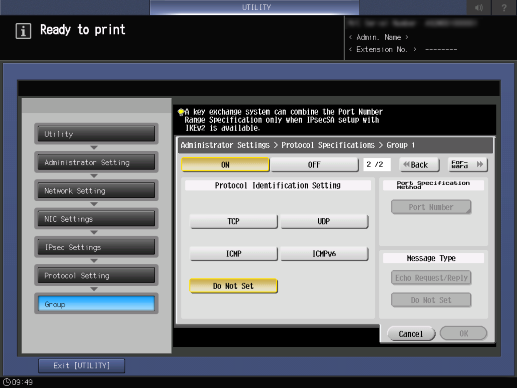

Screen

Common keys

Key name

Description

[Back]

Moves to the previous screen.

[For-ward]

Move to previous screen.

[Cancel]

Moves to the previous screen without saving the settings.

[OK]

Saves the settings and moves to the previous screen.
