[Tri-Fold Position Adj.]
Overview
Adjust the tri-fold position on the saddle stitcher.
Make this adjustment when the fold position deviates from the standard value.
Tips
- If a numeric value is entered in [Offset for All Size], it is applied to all the paper sizes. If a numeric value is entered for a specific paper size, the setting value becomes the sum of the entered value of the specific paper size and the entered value of [Offset for All Size].
- When adjusting both [Fold 1] and [Fold 2], first adjust [Fold 1]. [Fold 1] is located on the paper edge, and [Fold 2] is located based on the [Fold 1] position. Standard value "b" shown in step 5 is changed by adjusting either one of the [Fold 1] and [Fold 2] positions.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | SaddleStitcher SD-506 | ||
Required items | - | ||
Setting items | [Fold 1] | Changes the 1st fold position. | |
[Fold 2] | Changes the 2nd fold position. | ||
[Offset for All Size] | Sets the fold position common to all the paper sizes. | ||
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

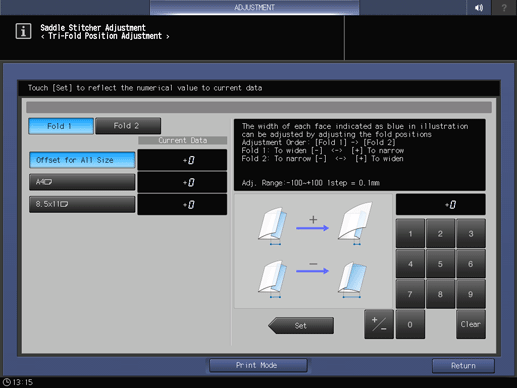

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Tri-Fold Position Adj.] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Tri-Fold Position Adj.] | |||
Procedure
1
Press the selection key of the paper size to adjust.
2
Press [Print Mode].
3
Load the paper of the size to be adjusted into any tray, and select that paper tray.
4
Press Start on the Control panel.
A sample is output.
5
Check lengths "a" and "b" of the printed paper.
Standard value: a = -1.5 mm to +1.5 mm, b = -3.0 mm to +3.0 mm
a | b | |
|---|---|---|
[A4w] | 97.5 mm ^ 1.5 mm | 102.0 mm ^ 3.0 mm |
[8.5e11w] | 91.6 mm ^ 1.5 mm | 96.1 mm ^ 3.0 mm |
(1) [Fold 1] (2) [Fold 2]
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7
Select [Fold 1].
8
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-100~+100 1step = 0.1mm]
9
Select [Fold 2].
10
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-100~+100 1step = 0.1mm]
11
Repeat step 2 to step 10 until the desired result is obtained.
