What Is the Control panel?

Control panel provides 2 types: Control panel of this system and Control panel of the optional Post inserter.

Control panel of this system: has keys and LED lamps arranged to operate this system or set functions. Each key is assigned to a function. Pressing a key allows the user to operate this system or configure settings. The LED lamps indicate the status of this system.

For details, refer to Control panel of This System.

Control panel of This System

Control panel of Post inserter: has keys and LED lamps arranged to manually set post-processing. Each key is assigned to a function. Pressing keys allows the user to configure post-processing settings of the Post inserter. The LED lamps indicate the setting status.

For details, refer to Control panel of Post inserter.

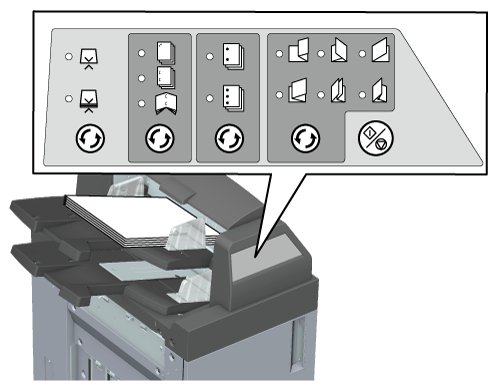

Control panel of PostInserter PI-502

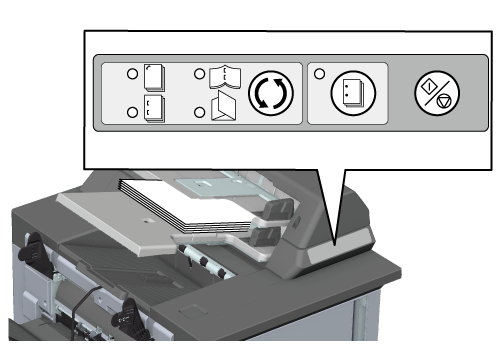

Control panel of FoldingUnit FD-503
