[Standby Pos.(Rear Adj.)]
Overview
Adjust the alignment plate position in the back of the crosswise direction of the Stacker tray to eliminate misalignment or distortion of the output paper.
This function is available when a significant misalignment occurs in the crosswise direction during output processing.
Tips
- Make adjustments together with [Standby Pos.(Front Adj.)]. For details about [Standby Pos.(Front Adj.)], refer to [Standby Pos.(Front Adj.)].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Large Capacity Stacker LS-507 | ||
Required items | - | ||
Setting items | [Stacker No.1] | Sets the alignment plate position of the 1st Large Capacity Stacker LS-507. This item is displayed when Large Capacity Stacker LS-507 is mounted as a pair. | |
[Stacker No.2] | Sets the alignment plate position of the 2nd Large Capacity Stacker LS-507. This item is displayed when Large Capacity Stacker LS-507 is mounted as a pair. | ||
Paper size selection key | Selects the paper size to adjust. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

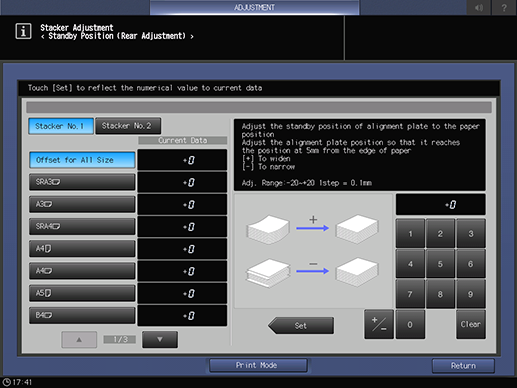

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Stacker Adjustment] - [Standby Pos.(Rear Adj.)] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Stacker Adjustment] - [Standby Pos.(Rear Adj.)] | |||
Procedure
1
When Large Capacity Stacker LS-507 is used as a pair, select [Stacker No.1] or [Stacker No.2].
2
Press the selection key of the paper size to adjust.
3
Press [Print Mode].
4
Load the desired paper into a paper tray, and select that paper tray.
5
Press Start on the Control panel.
A sample is output, and printing is interrupted. A warning message is displayed on the screen.
6
Check whether the distance between the paper edge in Large Capacity Stacker LS-507 and the alignment plate position in the back of the crosswise direction is 5 mm.
When the check is completed, remove paper.
7
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
8
Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

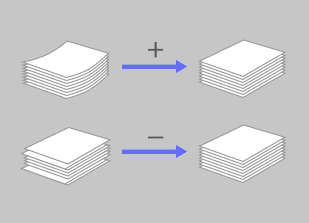

(-) To narrow the standby position, (+) To widen the standby position
[Adj. Range:-20~+20 1step = 0.1mm]
9
Repeat step 3 to step 8 until the desired result is obtained.
