Administrator Setting | [Half-Fold Position Adj.]

[Half-Fold Position Adj.]

Adjust the fold position for half-folding. Make this adjustment when the fold position deviates from the standard value.

Tips

If a numeric value is entered in [Offset for All Size], it is applied to all the paper sizes. If a numeric value is entered for a specific paper size, the setting value becomes the sum of the entered value of the specific paper size and the entered value of [Offset for All Size].

Category		Adjustment / Maintenance
Location	Machine	Touch Panel
	Printer driver	-
	Application	-
Required options		FoldingUnit FD-503
Required items		-
Setting items		[Offset for All Size]	Sets the fold position common to all the paper sizes.
		Paper size selection key	Selects the paper size to adjust.
		[+] / [,]	Switches the paper size page.
		Keypad	Used to enter numeric values.
		[Clear]	Returns the entered numeric value to "0".
		[Set]	Sets the numeric value entered using the keypad to the selected setting item.
Remarks		-
Reference		-
Screen access		Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Multi Folder Adjustment] - [Multi Folder(Fold) Adj.] - [Half-Fold Position Adj.]
		Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Multi Folder Adjustment] - [Multi Folder(Fold) Adj.] - [Half-Fold Position Adj.]

Press the selection key of the paper size to adjust.

Press [Print Mode].

Load the paper of the size selected in step 1 into any paper tray, and select that paper tray.

[Separate Scan] is automatically set to [Half-Fold].

Press Start on the Control panel.

A sample is output.

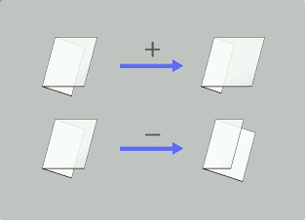

Check the misalignment "a" at the edge of the output paper.

Standard value: a = -1.5 mm to +1.5 mm or less

If any adjustments are required, press [Exit PrintMode] to return to the setting screen.

Use the on-screen keypad to enter the numeric value.

Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

[Adj. Range:-50~+50 1step = 0.1mm]

Repeat step 2 to step 7 until the desired result is obtained.
