Administrator Setting | [2-Side Slit Position]

[2-Side Slit Position]

Adjust the 2-side slit position in the paper feed direction.

Category		Adjustment / Maintenance
Location	Machine	Touch Panel
	Printer driver	-
	Application	-
Required options		Trimmer Unit TU-510
Required items		-
Setting items		[2-Side Slit Front]	Adjusts the 2-side slit position of the front side.
		[2-Side Slit Rear]	Adjusts the 2-side slit position of the rear side.
		Keypad	Used to enter numeric values.
		[Clear]	Returns the entered numeric value to "0".
		[Set]	Sets the numeric value entered using the keypad to the selected setting item.
Remarks		-
Reference		-

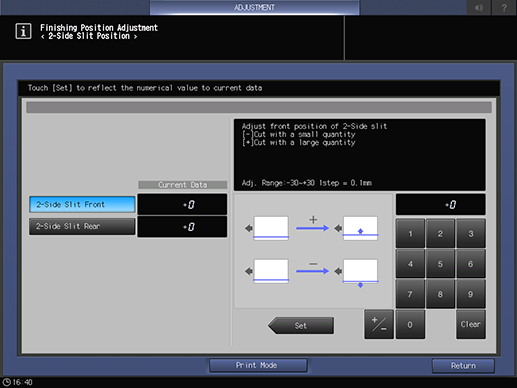

Screen access		Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [Finishing Position Adj.] - [2-Side Slit Position]
		Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [Finishing Position Adj.] - [2-Side Slit Position]

Press [Print Mode].

Load the desired paper into a paper tray, and select that paper tray.

Press Start on the Control panel.

A sample is output.

Check the 2-side slit position.

If any adjustments are required, press [Exit PrintMode] to return to the setting screen.

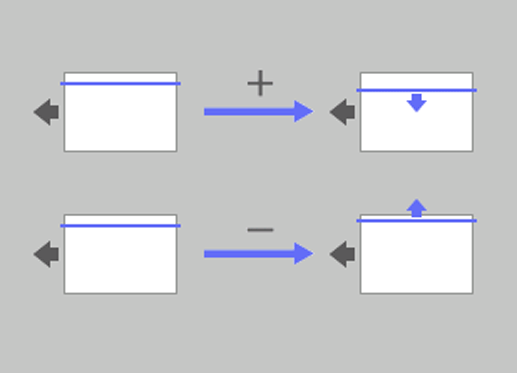

Select [2-Side Slit Front].

Use the on-screen keypad to enter the numeric value.

Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

(-) To cut a small quantity, (+) To cut a large quantity

[Adj. Range:-30~+30 1step = 0.1mm]

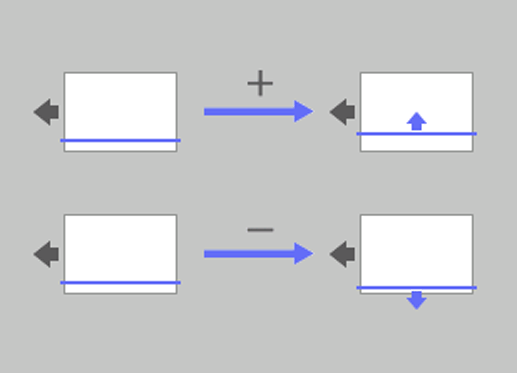

Select [2-Side Slit Rear].

Use the on-screen keypad to enter the numeric value.

Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].

(-) To cut a small quantity, (+) To cut a large quantity

[Adj. Range:-30~+30 1step = 0.1mm]

Repeat step 1 to step 9 until the desired result is obtained.
