[ADF Frame Erase]
Overview
Set whether or not to erase an image (frame erase) at the lead edge, rear edge, or both sides when scanning the original using the ADF. When erasing, set the amount to erase.

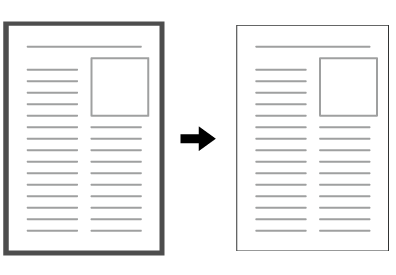

[Frame Erase] is a function that erases black copy marks around an image that occur when the original is scanned.
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is [User Setting]?.
Reference
- When scanning the original on the Original glass, set the frame erase amount in [FrameCenterErase] of [COPY] or [SCAN]. For details, refer to [FrameCenterErase].
Specifications
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [None] | Does not perform the frame erase function. | |
[1mm] | Erases the image at the lead edge, rear edge, left side, or right side of the original with the specified width. | ||
[2mm] | |||
-[3mm] | |||
[4mm] | |||
[5mm] | |||
Remarks | -: Default | ||
Reference | - | ||

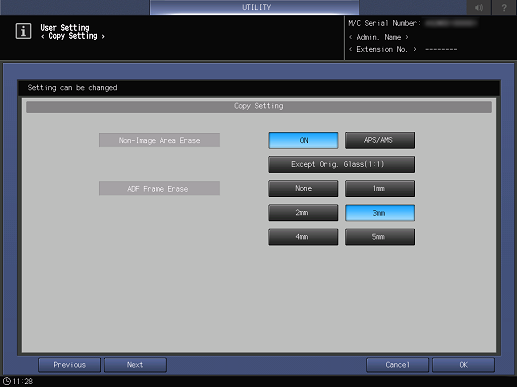

Screen access | Control panel - Utility/Counter - [User Setting] - [Copy Setting] | ||
Control panel - Utility/Counter - [Administrator Setting] - [Copy Setting] | |||
Procedure
1
Select the item to set.
2
Press [OK].
