The Jam position display of Finisher FS-541 is Blinking
The Jam position display is Blinking
The Stacker of Finisher FS-541 is equipped with the Vertical alignment plate to arrange the position of the paper feed direction. Depending on the Vertical alignment plate stop position, the Jam position display may blink, causing an output failure.
NOTICE
- Clear the paper jam if the Jam position display is on.
Adjusting the Position of the Vertical alignment plate
Follow the steps below to turn off the blinking of Jam position display.
1

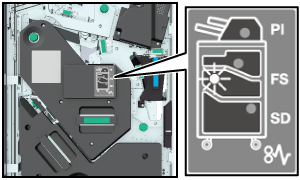

Open the Finisher front door and check to see if the Jam position display is blinking or not.
2

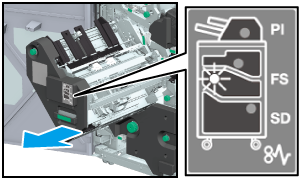

Hold the Handle [FS9] and pull out the Stacker.
3

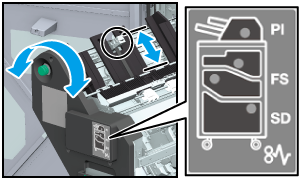

Rotate the Knob [FS8] and take out the Stacker - Vertical alignment plate.
Make sure that the Vertical alignment plate is within the range of the arrows shown in the illustration.
The blinking lamp on the Jam position display disappears.
4

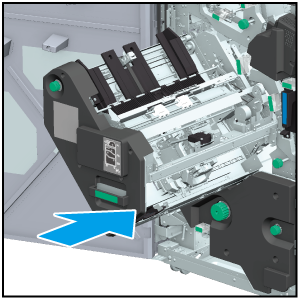

Hold the Handle [FS9], return the Stacker to its home position and close the Finisher front door.

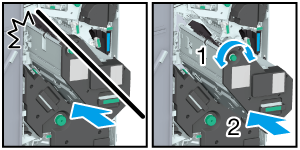

If the Vertical alignment plate interferes with the machine at any location, it is locked, and you cannot return the Stacker to its home position. Turn the Knob [FS8] to unlock, and return the Stacker to its home position.
