Easy installation of Printer Drivers
Overview
Easily install the PS Plug-in Driver on Windows.
Port 9100 or USB can be used for the connection.
NOTICE
- The following settings must be configured before installation.
- Set the IP address of the Image Controller.
- When connecting via Port 9100: Configure the port number (default: 9100) for the RAW port being used
Reference
- For details about the supported operating systems, refer to Windows.
Procedure
1
Double-click the downloaded printer driver.
Click either [Allow], [Continue], or [Yes] if the screen related to [User Account Control] is displayed.
The language selection screen is displayed.
2
Select the desired language in the menu list, and click [OK].
This launches the printer driver installer.
Follow the on-screen instructions to install software.

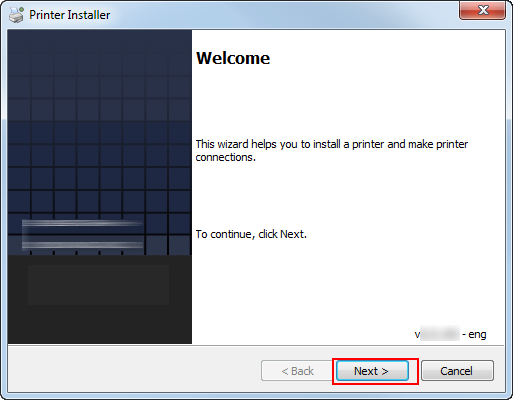

3
Click [Next].
4
Enter the printer name or the IP address of the Image Controller, and click [Next].
If you select [Network printer name or IP Address], click [Next] and proceed to Step 6.
If connecting to another printer, select [Other Connection] and click [Next].
[Network printer name or IP Address]:
The machine will be configured as a Windows printer.
Printer name will be created using the lpr port (e.g. myprinter:print.).
[Other Connection]:
Configure another printer connection (NetBIOS or Port 9100).
5

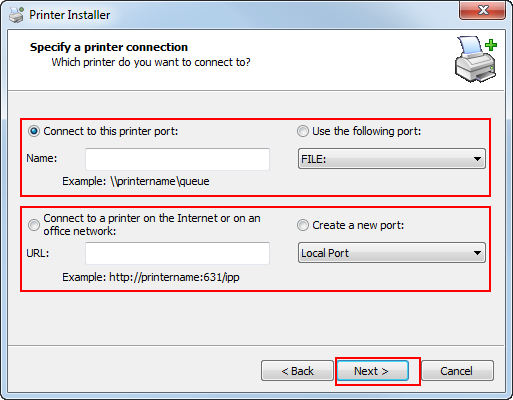

If [Other Connection] is selected, select the printer connections and click [Next].
When using DNS over the network, the administrator must check that the network name allocated on the system matches the network name saved on the DNS.
6

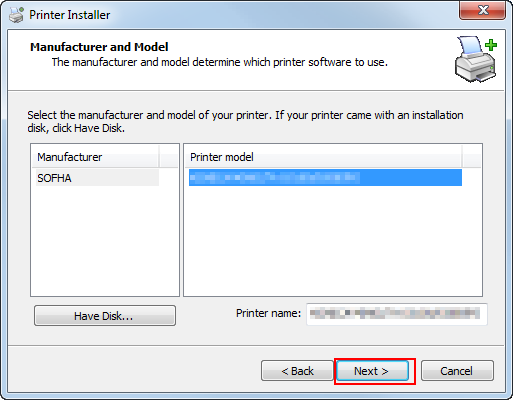

Select the printer name and click [Next].
A list of installable printers is displayed. If the printer you want to install is not displayed, click [Have Disk] and select the [Setup.inf] file.
7
Click [Next].
8
Click [Finish].
Installation is completed.
When the printer is installed, you are able to select printers from the application print screen.
