The Perfect Binder PB-503 - Paper jam indicator is On

The Paper jam indicator is Blinking
Removing Jammed Paper

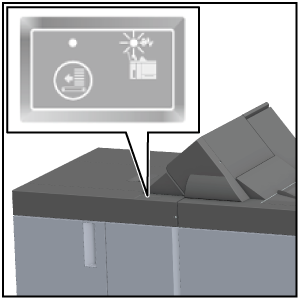

The Paper jam indicator is Blinking

If the finisher is installed on the left side of the Perfect Binder PB-503, paper is conveyed to the finisher.

At this time, the light will turn on if a paper jam occurs in the conveyance section of the perfect binding system.

NOTICE
  • Check and see if the Paper jam indicator on the perfect binding system is lit or not when paper jam occurs.

Removing Jammed Paper

If the Paper jam indicator is on, follow the instructions below and remove the jammed paper.
1

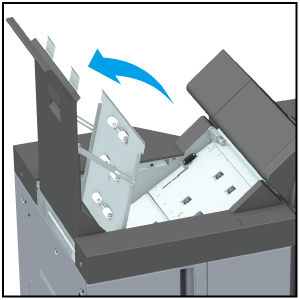

Open the Conveyance section cover of the perfect binding machine.
2

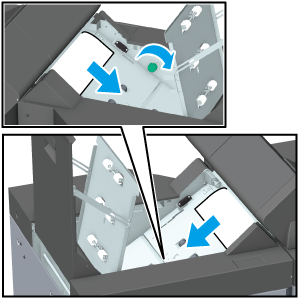

Turn Knob [PB14] left and remove the jammed paper from the inlet of the conveyance section.
3

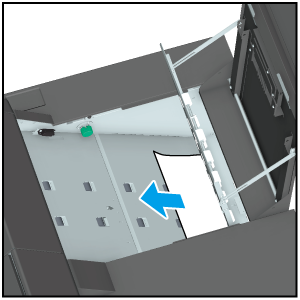

Remove any jammed paper from the outlet of the conveyance section.
4
Check that there is no jammed paper in the finisher.
5

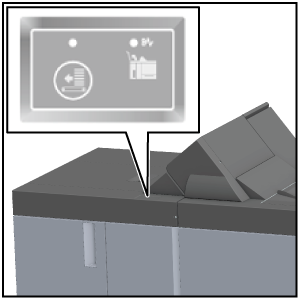

Check that the Paper jam indicator is no longer on.
