Cleaning the SaddleStitcher SD-506
Overview
Clean the SaddleStitcher SD-506 - Conveyance belt - Conveyance belt.
If the Conveyance belt is dirty, the output paper can become dirty.
It is recommended that you clean the tray before each use. Be sure to quickly clean the Conveyance belt if it becomes dirty during use.
Procedure
1

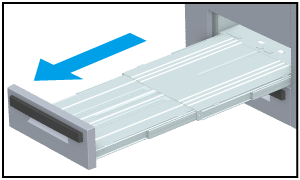

Pull the Conveyance belt out all the way until it stops.
2

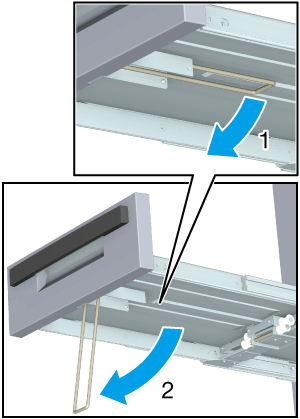

Set up the stand beneath the tray.
NOTICE
- Be sure to put the stand upright to prevent any potential mechanical failures.
3

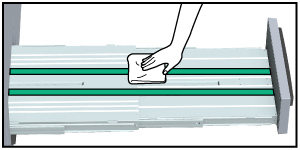

Apply some cleaning alcohol to a soft cloth and wipe clean the visible sections of the two Conveyance belt.
4

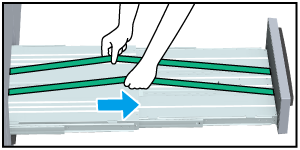

Move the Conveyance belt and clean Conveyance belt entirety.
Gently lift both of the Conveyance belt with your hands and, at the same time, pull them out so that you reveal the sections which haven't been cleaned yet.
Apply some cleaning alcohol to a soft cloth and wipe clean the Conveyance belt.
Repeat Steps 3 and 4 around three times to ensure that the entire circumference of the belt is clean.
NOTICE
- Do not lift the Conveyance belt more than is required. Be sure to pull out the two belts at the same time. Pulling out just one of the belts can lead to mechanical failure.
5

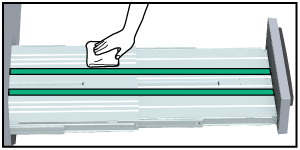

Clean the bottom surface of the Conveyance belt.
Apply some cleaning alcohol to a soft cloth and wipe clean the entire bottom surface.
6
Return the stand to its home position, and push the Conveyance belt back to their home position.
NOTICE
- Do not push the Conveyance belt back to their home position while the stand is still in upright position.
