Replacing the Cyclone Box

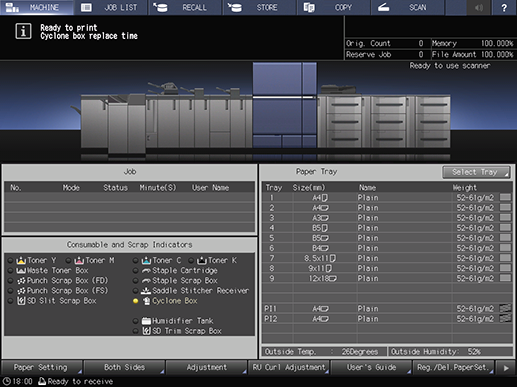

When it is time to replace the Cyclone Box, the following message is displayed in the information display area on the screen.

[Ready to print Cyclone box replace time]

The cyclone box indicator of [Consumable and Scrap Indicators] lights up yellow to notify that the Cyclone Box replacement is necessary.

If printing is interrupted because it is time to replace the Cyclone Box, the cyclone box indicator lights up red and the text changes to red. Then, the following message is displayed in the information display area on the screen.

[Please replace cyclone box]

Display	Caution/Warning During Work
	Warning, Risk of Explosion
	Risk of unforeseen accidents such as dust explosions.
	Never dispose of a cyclone box containing waste toner in a fire.
	For more information about how to handle a cyclone box, contact your service representative.

1

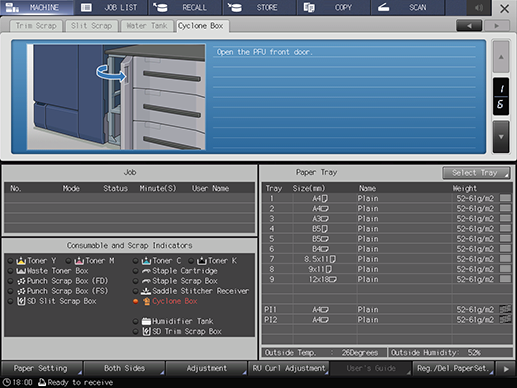

Press [Cyclone Box] in [Consumable and Scrap Indicators].

2

Press [,] or [+] to display the procedure and then perform the operation accordingly.
