Before Creasing
Overview
If you want to crease the paper of 351 g/m2 / 94 lb Bond or more using Trimmer Unit TU-510, reposition the adjustment bracket of Creaser Unit CR-102.
Procedure
1
Open the Trimmer unit right side door and Trimmer unit left side door of the Trimmer Unit TU-510.
2
Tilt the Lever [TU4] to the left and the Lever [TU5] to the right, then pull out the conveyance rack.
3

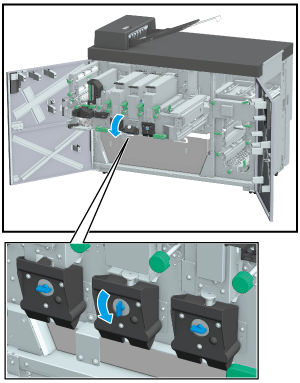

Move the Lock lever [TU6] as shown below, and fix the conveyance rack.
4
Turn the Option fixing bracket counterclockwise, and open the cover.
5
Remove the Creaser Unit CR-102.

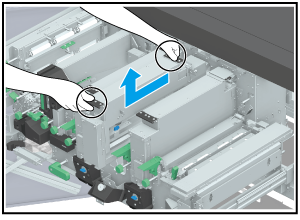

When removing, hold the black handles and lift the unit in the direction of the arrow as shown in the figure.
Put the removed Creaser Unit CR-102 on a stable table.
6

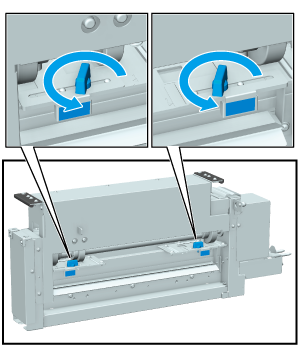

Turn the knobs (2 locations) of the Creaser Unit CR-102 adjustment brackets counterclockwise, and loosen them.
7

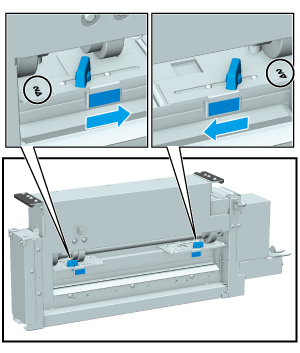

Hold the blue label parts of the Creaser Unit CR-102 adjustment brackets (2 locations), and move the unit to the center side.
Move the adjustment brackets to the position at which you can see the "2*" and "2)" marks.
If the paper weight is below 350 g/m2 / 93 lb Bond, return the adjustment brackets to the position at which you can see the "1*" and "1)" marks.
8

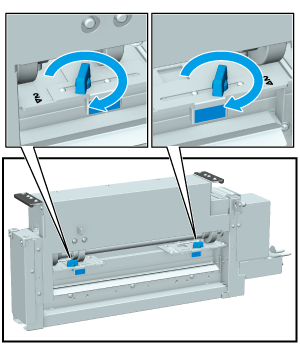

Turn the knobs (2 locations) of the Creaser Unit CR-102 adjustment brackets clockwise, and tighten them.
9
Mount Creaser Unit CR-102 in Trimmer Unit TU-510.
10
Close the cover, and turn the Option fixing bracket clockwise.
11
Return the Lock lever [TU6] to its home position.
12
Push the conveyance rack in the inside, and return it to its home position. Then, return the Lever [TU4] to the right and the Lever [TU5] to the left.
13
Close the Trimmer unit right side door and Trimmer unit left side door.
