Interfaces Used for Connections

Connect the printer cable to applicable port of the image controller.

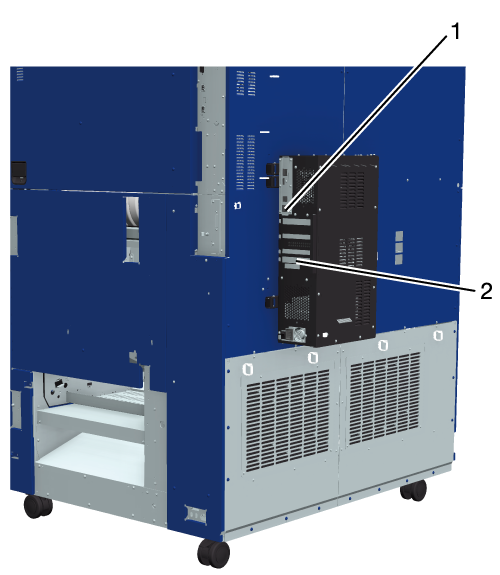

Backside of the system

No.

Name

Description

1

Network port (1000BASE-T/100BASE-TX/10BASE-T)

Use when using a network connection. The protocol is compatible with TCP/IP (LPD/LPR and SMB).

2

Service port (USB2.0 Type B e 1)

Use when using a USB connection. Can be connected on Windows PC. Local Interface Kit EK-612 and USB cable are required for connection.

Use any of the following USB cables.

A type (4-pin, male) - B type (4-pin male)

3 m or less
