Loading Paper Into the FoldingUnit FD-503 - Post inserter

Overview
Procedure

Overview

Load paper into the FoldingUnit FD-503 - Post inserter.

Change the paper settings of Upper tray or Lower tray of Post inserter when loading paper of different specifications.

Reference

Procedure

1

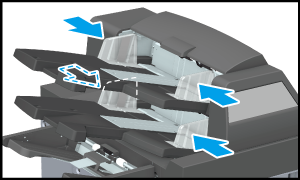

Load paper into Upper tray or Lower tray of Post inserter.

The remaining paper amount indicator changes from "" to "".

2
Push the Side guides against the paper.
NOTICE
  • Do not load more than 500 sheets of paper (80 g/m2 / 21 lb Bond) to either Upper tray or Lower tray. Also be careful not to exceed the maximum stack height lines displayed on the Side guides.
