Web Utilities
Overview
This section describes the method for accessing Web Utilities.
Tips
- Contact the network administrator for more details regarding network settings.
Procedure
1
Launch your browser.
2
Enter the following URL into the address bar and press [Enter].
http://<IP address of this system>:30091
Example: Case where the IP address of the system is 192.168.1.20: "http://192.168.1.20:30091"
When the Image Controller IC-318, Image Controller IC-319, or Image Controller IC-316 is mounted, type "http://<IP address of the system>/".
Example: Case where the IP address of the system is 192.168.1.20: "http://192.168.1.20/"
You can also access from Web Connection. For details, refer to Web Connection.

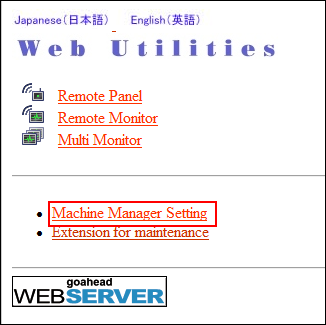

This displays the [Main Page] screen of the system's Web Utilities.
3
Click [Machine Manager Setting] if using the administrator settings menu.
A dialog box for entering your password is displayed.
4
Enter "admin" for the Username and the (8-digit) administrator password for the password. Click [OK]. The username is fixed with "admin" and cannot be changed.
The [Machine Manager Setting] screen is displayed.
Tips
- For details about the default administrator password, refer to [About the Administrator Password]. If you cannot log in using the default password, contact the administrator.
- If [SSL Setting] is enabled, the URL is changed to "https://<IP address of the system>:30092".
in the upper-right of a page, it turns into
and is registered as a bookmark.
