Loading Small-sized Paper Into the Paper Feeder Unit PF-712 / Paper Feeder Unit PF-713
Overview
Open the Small size guides, and load small-sized paper into the Paper Feeder Unit PF-712/Paper Feeder Unit PF-713.
The minimum width of the Side guides of Paper Feeder Unit PF-712 / Paper Feeder Unit PF-713 is 139.7 mm / 5.5". To load paper of the width less than the minimum, open the Small size guides.
NOTICE
- Small sized paper can only be loaded to the 1st paper feeder unit.
Tips
- Do not open Small size guides when loading paper wider than the minimum width of Side guides.
- Open both Small size guides when using the Small size guides. Do not load the paper in a state when only one of them is open.
Procedure
1
Pull out the tray into which the paper is loaded.
NOTICE
- The tray cannot be pulled out if the power supply of the machine is not first turned on. Turn the Sub power switch on. For details, refer to Switch on Power Supply of the System..
- Do not pull out multiple trays at once. Doing so may cause the machine to topple over.
2

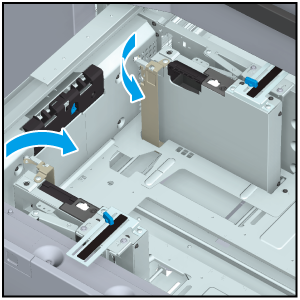

Open each of the Small size guides of the front and back side Side guides inward.
3

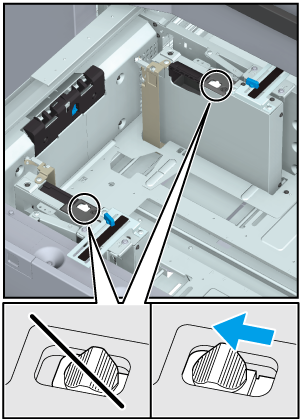

Slide the Paper holding plate fixing lever (2 locations) to the left, and lock them.
4

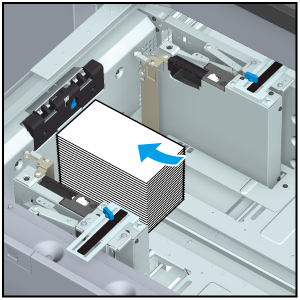

Load paper with the print side facing up while aligning to the left side of the tray.
Load the paper so that it is aligned with the left side of the tray.
NOTICE
- Exercise care that loaded paper does not exceed the maximum stack height lines displayed on the Small size guides.
5

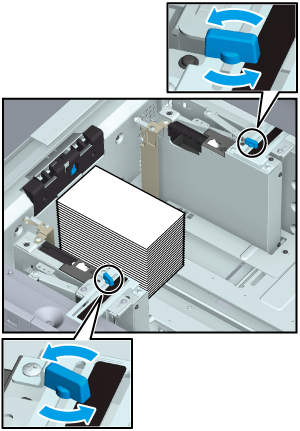

Move the Side guides and place the Small size guides flush against the paper.

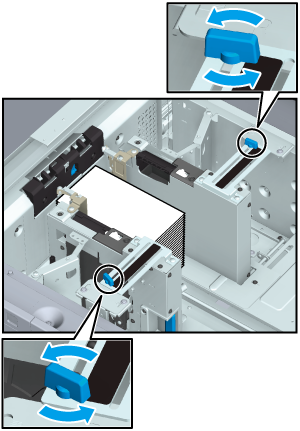

Rotate the Side guide lock knobs of Side guides counterclockwise to loosen them.
Press down the Side guide lock release lever of front side Side guides and place the Small size guides flush against the paper.
Rotate the Side guide lock knobs of Side guides clockwise and lock the Small size guides.
6

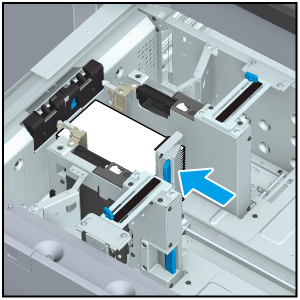

Place the Rear guide plate flush against the paper.
Hold down Rear edge guide lock release lever of Rear guide plate and place against the paper.
NOTICE
- Exercise care not to exceed the maximum stack height lines displayed on Small size guides when loading the paper.
- Make sure that Rear guide plate is firmly placed against the paper. The machine will not be able to properly detect the correct paper size if there is a gap between the Rear guide plate and the paper, which in turn can lead to the paper jamming or a machine malfunction.
7
Firmly push the tray all the way in.
