User's Guide

> Startup Guide > Replenishing and Replacing Consumables > Replenishing the Humidifier Tank Water

Replenishing the Humidifier Tank Water

Overview
Procedure

Overview

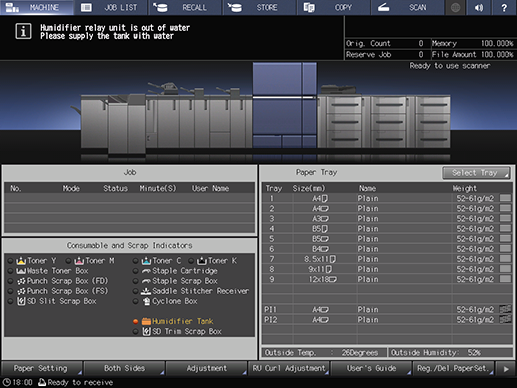

If the water in the Humidifier HM-103 (option) humidifier tank mounted on the Relay Unit RU-518m runs out, you cannot adjust curls via humidification. In this case, the following message is displayed in the on-screen information display area.

[Humidifier relay unit is out of water Please supply the tank with water]

The humidifier tank display in the [Consumable and Scrap Indicators] display lights up red and the text color changes to yellow.

NOTICE
  • Do not add dirty water, well water, or water that has passed through a water purifier to the humidifier.
    Doing so can result in bacteria propagating within the tank. Only use sterilized tap water, mineral water or alkaline ionized water.

Procedure

1

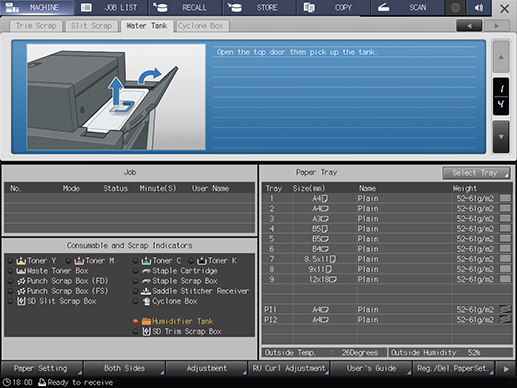

Press [Humidifier Tank] in [Consumable and Scrap Indicators].
2
Press [,] or [+] to display the procedure and then perform the operation accordingly.
