Loading Tab Paper Into the Multi Bypass Tray MB-511

Load tab paper into the Multi Bypass Tray MB-511.

Example: Insert three sheets of tab paper into one print set

Tray Loading Direction	How to Stack the Tab Paper	Print Set

E.g.: Insert three sheets of tab paper to three print sets (total 9 sheets)

Tray Loading Direction	How to Stack the Tab Paper	Print Set

Tips

• There is a possibility that sheets of paper may stick together due to punch holes if tab paper with punch holes is used. To prevent multiple sheets being fed at once, flick through the stack by hand before loading the paper. For details about how to separate paper, refer to Managing Paper.
• When loading tab paper into any tray, change the size setting of the tray to tab paper in Paper Setting. For details, refer to [Change Set].

1

Open the Bypass tray.

2

Set [Paper Size] of Bypass tray to [Tab Paper] in [Paper Setting].

3

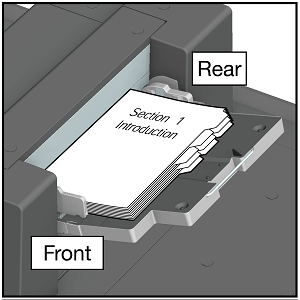

Load the tab paper to the Bypass tray.

Exercise care not to load paper above the maximum stack height lines marked on the Side guides above the Bypass tray.

4

Place the Side guides above the Bypass tray flush against the tab paper.
