Network Connection (Bonjour)
Overview
Configure the printer connection settings.
To make prints, select the desired printer on the [Printers & Scanners] screen after configuring the network setting for the system.
The following connection methods can be used.
- Bonjour
- LPD
This section describes using Bonjour connections. For details about other available connection methods, refer to [Network / Security].
Tips
The following settings must be configured before connecting.
- Configure the IP address
Reference
- For details about the IP address setting, refer to [TCP/IP Settings].
Procedure
1
Click the Apple mark and select [System Preferences] from [Apple Menu].
2
Click the [Printers & Scanners] icon.
3
Click [+].
Click [Add (Other) Printer or Scanner] if the menu is displayed.
4
Click [Default].
Connected printers is detected.
Turn the power of the system off/on, if the printer is not detected.
When turning the power off/on, first turn the power off, wait for approximately 10 seconds, and then turn the power on. The system may not function correctly if you turn the power on too quickly.
5

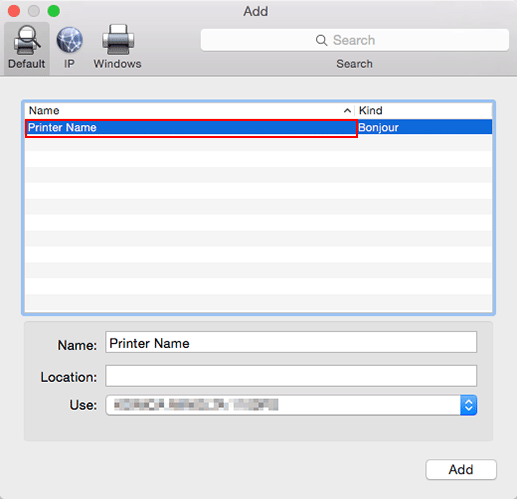

Select the name of the Bonjour-connected model from the [Printer Name] list.
The printer driver corresponding to the selected printer name will be selected automatically.
For the printer name, the value enclosed in parentheses ( ) at the end of [Bonjour Name] corresponds to the last 3-byte value of the MAC address by default. On-screen, an example for changing the "Printer Name" is provided.
If the printer driver is correctly selected, proceed to Step 7.
If the printer driver is not correctly selected, proceed to Step 6.
6
Manually select the printer driver. Select [Select (Printer) Software] in [Use(Print Using)]. Then, select the printer driver for the printer you want to use from the list displayed in the separate window.
7
Click [Add].
The selected printer is registered in [Printers & Scanners].
