User's Guide

> Startup Guide > Paper Loading and Settings > Loading Banner Paper > Attaching the Banner Paper Tray Unit MK-760 to Multi Bypass Tray MB-511

Attaching the Banner Paper Tray Unit MK-760 to Multi Bypass Tray MB-511

Overview
Procedure

Overview

Attach the Banner Paper Tray Unit MK-760 to Multi Bypass Tray MB-511.

Then, you can load banner paper.

Procedure

1

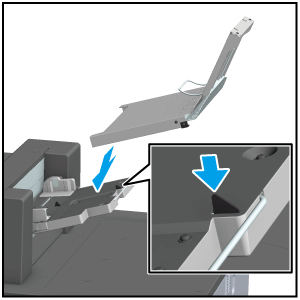

Cover Banner Paper Tray Unit MK-760 from a little upper right while pressing down the Paper detection sensor of Multi Bypass Tray MB-511.
2

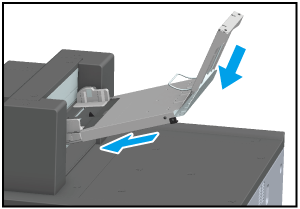

Push the covered Banner Paper Tray Unit MK-760 into the system.
3

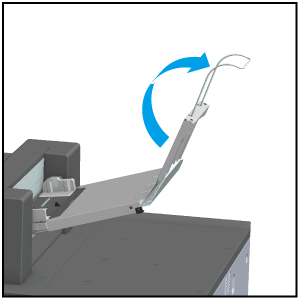

Extend the Extension guide.
4

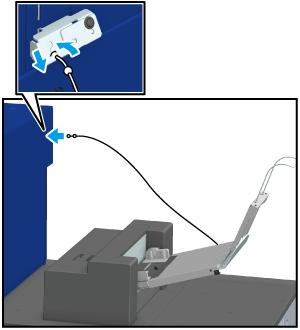

Hang the tip of the Wire rope (ball fitting) onto the bracket on the machine itself.
