Clearing Paper Jams
Notes for Clearing Paper Jams
This section describes points to keep in mind when clearing paper jams. Be sure to read this section before attempting to clear a paper jam.
- Do not turn the Main power switch or Sub power switch off when clearing paper jams. Doing so will make it difficult to pull the tray out or Conveyance fixing unit.
- Lever [M1] which pulls out Conveyance fixing unit tilts to the right and cannot pull out Conveyance fixing unit if there is a jam in the machine paper feed inlet or output section. Do not under any circumstances forcefully try to tilt Lever [M1].
- Exercise care not to tear the paper or leave scraps of paper in the machine when clearing the jam.

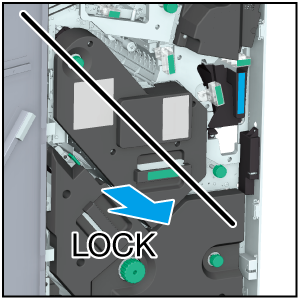

- When attempting to pull out the Stacker of the Finisher FS-541 in order to clear a paper jam, it may be locked and you are unable to pull it out.

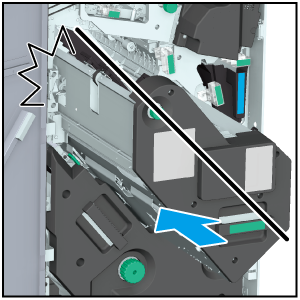

- There may also be occasions when you try to return the pulled out Stacker, it may be locked and cannot be returned to its original position.

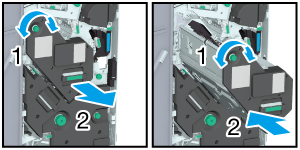

- In either case, rotate the Knob [FS8] of Stacker. This unlocks the stacker and allow you to operate it again.
Reference
- Jam codes can also be displayed in the message display area on the [JAM Position] screen. For details, contact your service representative.
How to Clear Paper Jams
1
Press [Illustration] on the [JAM Position] screen.
The [Illustration] screen is displayed.
If there are multiple illustrations, press [Next] to check how to clear the paper jam.
Press [JAM Position] to return to the [JAM Position] screen.
2
Clear the paper jam according to the instructions given on the screen.
NOTICE
- Be sure to confirm the position of the warning label before clearing the paper jam. For details, refer to [Safety Information] of booklet manual.
3
When processing is completed, the display returns to the [MACHINE] screen.
If there are multiple paper jams, you are returned to [JAM Position] screen, and the location of the jam to be cleared is displayed. Repeat Step 1 and Step 2 until all places are cleared. When all paper jams are cleared, the display returns to the [MACHINE] screen.
Display | Caution/Warning During Work |
|---|---|
 |
|
Risk of burns. | |
Do not touch the high temperature parts on the left side of the fixing unit or those under the cover of the machine fixing part. | |
Be especially careful when pulling out the fixing conveyance unit or opening the fixing side part. | |
 |
|
Risk of injury. | |
Do not place your hand or arm in the gap between the machine and fixing conveyance unit. | |
Touching elements such as the connections of electrical components can lead to malfunctions or accidents. Do not take any risks. Contact your service representative. | |
|
|
Risk of injury from jammed staples. | |
Take care when clearing jammed staples. | |
Staples are sharp! | |
|
|
Risk of burns. | |
Do not touch the glue tank unit with your hands. | |
Take extra care when pushing a unit in when it is in a state where the glue tank unit comes out at the front side. |
Warning, High Temperatures and Risk of Burns
