Loading Paper Into the PostInserter PI-502

Overview
Procedure

Overview

Load paper into the PostInserter PI-502.

Change the paper settings of Upper tray or Lower tray of Post inserter when loading paper of different specifications.

Reference

Procedure

1

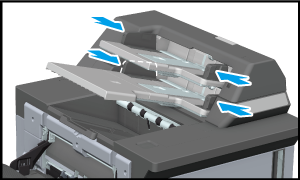

Load paper into Upper tray or Lower tray of Post inserter.

The remaining paper amount indicator changes from "" to "".

2
Push the Side guides against the paper.
NOTICE
  • Do not load more than 200 sheets of paper (80 g/m2 / 21 lb Bond) or 30 mm / 1.18" to either Upper tray or Lower tray.
