Switch on Power Supply of the System.
Overview
The system comes with 2 power switches namely a Main power switch and a Sub power switch.
When switching ON the power of the system, switch it ON from Main power switch .
Procedure
1
Open the Front door and turn the Main power switch on.
The Power LED on the Control panel lights up orange.
NOTICE
- Keep the Main power switch ON. Normally, do not turn the main power switch off/on.
2
Turn on the Sub power switch on the right side of the machine.
The Power LED on the Control panel lights up blue.
3

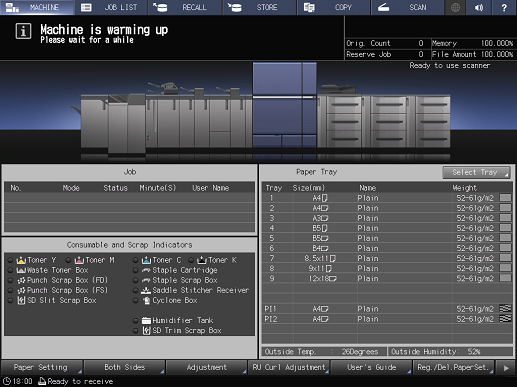

The wake-up and warm-up screens is displayed.
The [MACHINE] screen that shows the warm-up process is displayed following the wake-up screen.
Warm-up takes approximately 8 minutes.
To change to the [COPY] screen, press the [COPY] tab on the screen while warm-up is displayed. If [Ready to set reserve job] is displayed on the [COPY] screen, the original is scanned during the warm-up process, and it can be output immediately when the system is ready to copy.
4

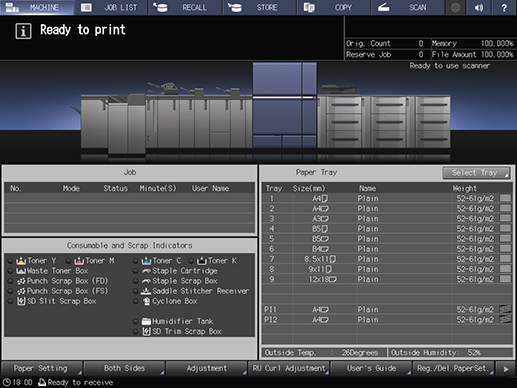

When the system is ready to output, [Ready to print] is displayed.
If a Key Counter or copy card insertion instruction is displayed, follow it to perform the appropriate operation.
