Copying

Overview
Procedure

Overview

This section describes the basic operating procedure for copying.

NOTICE
  • The copy function is available on a product equipped with a scanner and HDD.
  • The optional Paper Feeder Unit PF-713 and Upgrade Kit UK-112 are required to use the copy function in this system.
Tips
  • The operation procedure described here is very basic. This is not the same for all set copying conditions. Follow relevant operation procedure.
Reference
  • For details about copying, refer to[COPY].

Procedure

1
Position the original.
2

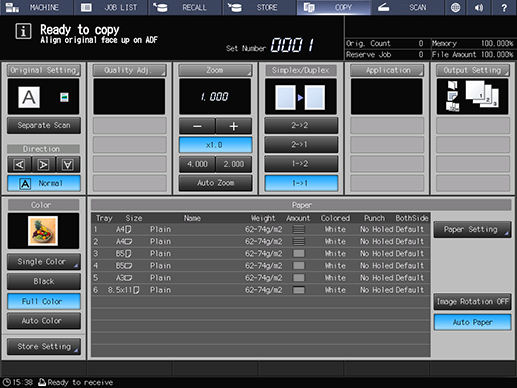

Configure copy conditions on the [COPY] screen.
3

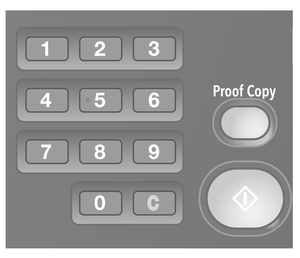

Enter the number of specified copies using the Keypad of the Control panel.
4
Press Start on the Control panel.
5

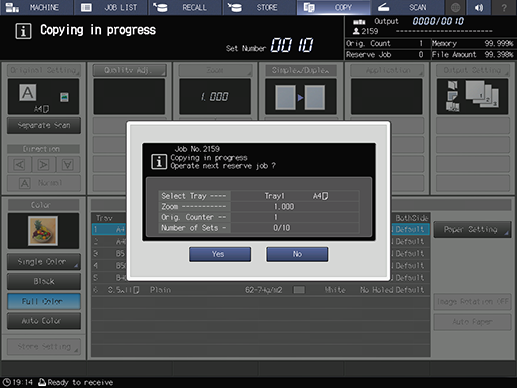

Press [Yes] or [No] in the dialog box.

Press [Yes] to return to the [COPY] screen.

Press [No] to return to the screen set in [User Setting] - [System Setting] - [Default Screen Setting].

The number of specified copies and that of output copies are displayed on the [MACHINE] screen.
